Cast iron・Set screw locking type UCT

Take‑up unit

Cast iron・Set screw locking type UCT

The UCT series cast iron flanged bearings, secured with set screws, feature a cast iron housing that ensures a robust construction with excellent rigidity and vibration resistance. The set screws allow for direct locking, making installation and removal straightforward whilst ensuring reliable positioning. These bearings offer self-aligning capabilities to compensate for installation misalignment and provide effective protection against dust and contamination. They are suitable for a wide range of general-purpose transmission equipment operating under light to medium loads and subject to vibration, offering high versatility, stability and durability.

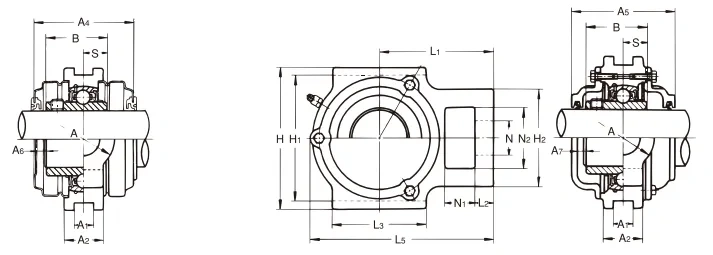

Cast iron・Set screw locking type UCT Model specification table
Shaft diameter (mm)	Unit model	A (mm)	A₁ (mm)	A₂ (mm)	H (mm)	H₁ (mm)	H₂ (mm)	L (mm)	L₅ (mm)	L₁ (mm)	L₂ (mm)	L₃ (mm)	N (mm)	N₁ (mm)	N₂ (mm)	B (mm)	S (mm)	A₄ (mm)	A₅ (mm)	A₆ (mm)	A₇ (mm)	bearing model number	Cr (kN)	Cor (kN)	Bearing seat model	Steel plate with cover model	Cast iron with cover model	Standard weight (kg)	Steel plate with cover weight (kg)	Cast iron with lid weight (kg)
140	UCT328	155	50	100	415	380	230	515	515	315	50	255	80	70	160	145	59	-	240	-	24	UC328	255	246	T328	-	CUCT328C(CE)	83.2	-	101
130	UCT326	150	50	100	385	350	220	465	465	285	45	240	75	65	150	135	54	-	230	-	24	UC326	229	214.3	T326	-	CUCT326C(CE)	68.4	-	83.5
120	UCT324	140	45	90	355	320	210	432	432	267	42	230	70	60	140	126	51	-	220	-	25	UC324	207	184.8	T324	-	CUCT324C(CE)	54.6	-	67.3
110	UCT322	130	38	80	320	285	185	385	387	235	38	215	65	52	125	117	46	-	210	-	26	UC322	205	178.8	T322	-	CUCT322C(CE)	38.8	-	48.2
105	UCT321	120	35	75	290	260	175	345	354	210	32	200	59	48	115	112	44	-	194	-	21	UC321	183	153.1	T321	-	CUCT321C(CE)	30.2	-	38.2
100	UCT320	120	35	75	290	260	175	345	349	210	32	200	59	48	115	108	42	-	190	-	21	UC320	173	140.4	T320	-	CUCT320C(CE)	30.6	-	37.9
95	UCT319	110	35	72	270	240	165	322	326	197	31	180	57	46	106	103	41	-	180	-	20	UC319	153	118.4	T319	-	CUCT319C(CE)	24.4	-	31.3
90	UCT318	110	32	66	255	228	160	312	316	192	30	175	57	46	106	96	40	-	168	-	20	UC318	143	107.2	T318	-	CUCT318C(CE)	21.2	-	27.4
85	UCT317	102	32	64	240	214	152	298	302	183	30	170	53	42	98	96	40	-	164	-	18	UC317	132	96.5	T317	-	CUCT317C(CE)	18.63	-	24.4
85	UCTX17	73	28	54	198	173	124	260	-	162	28	157	48	38	73	96	39.7	-	-	-	UCX17	95.5	71.4	TX17	-	-	11	-	-
85	UCT217	73	30	54	198	173	124	260	264	162	29	157	48	38	73	85.7	34.1	-	150	-	16	UC217	83.5	61.8	T217	-	CUCT217C(CE)	11.2	-	15.4
80	UCT316	102	30	60	230	204	150	282	285	174	28	160	53	42	98	86.4	34	-	154	-	17	UC316	123	86.4	T316	-	CUCT316C(CE)	15.6	-	20.7
80	UCTX16	73	28	54	198	173	124	260	-	162	28	157	48	38	73	85.7	34.1	-	-	-	UCX16	83.5	61.8	TX16	-	-	11.3	-	-
80	UCT216	70	26	51	184	165	111	235	236	140	21	121	41	32	70	82.6	33.3	-	146	-	15	UC216	72.5	53	T216	-	CUCT216C(CE)	8.5	-	12.4
75	UCT315	90	26	55	216	192	132	262	266	160	25	150	46	36	85	82	32	-	150	-	17	UC315	114	76.9	T315	-	CUCT315C(CE)	13	-	17.2
75	UCTX15	70	28	48	184	165	111	235	-	140	21	121	41	32	70	82.6	33.3	-	-	-	UCX15	72.5	53	TX15	-	-	8.4	-	-
75	UCT215	70	26	48	167	151	111	232	232	140	21	121	41	32	70	77.8	33.3	-	136	-	17	UC215	66	48.2	T215	-	CUCT215C(CE)	7.5	-	10.2
70	UCT314	90	26	52	202	180	130	252	256	155	25	140	46	36	85	78	33	-	140	-	17	UC314	104	68	T314	-	CUCT314C(CE)	11.2	-	15
70	UCTX14	70	26	48	167	151	111	232	-	140	21	121	41	32	70	77.8	33.3	-	-	-	UCX14	66	48.5	TX14	-	-	7.7	-	-
70	UCT214	70	26	46	167	151	111	224	224	137	21	121	41	32	70	74.6	30.2	-	134	-	16	UC214	62	44	T214	-	CUCT214C(CE)	7.1	-	9.8
