Adjustable slider-type stainless steel flanged bearing units feature a slider-type housing design with grooves, allowing for flexible adjustment of the mounting position. They are suitable for applications where installation space is limited or where fine adjustments to the shaft alignment are required. Constructed entirely from stainless steel, these units offer excellent rust and corrosion resistance. The self-aligning spherical roller bearings effectively compensate for installation misalignment, ensuring smooth operation and easy maintenance. They are widely used in transmission applications—such as food processing machinery, automated conveying equipment and light industrial machinery—where high standards of corrosion resistance, hygiene and installation adaptability are required.

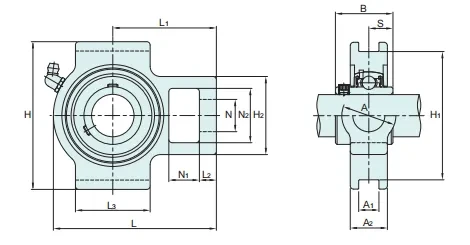

shaft diameter (mm)	Bearing unit type number	Main dimensions（mm）																	Basic Rated Load(kN)			Bearing Seat Type Number	Type Bearing unit type number with protective cover Rubber sealed covers on both sides （Single side shaft end shield）	Weight（kg）
		A	A1	A2	H	H1	H2	L	L1	L2	L3	N	N1	N2	B	S	A4	A6	Type number	C_r	C_or			lidless	with lid
		50	MUCT210VN,Y	49	16	37	116	102	74	147	89	16	72	29	20	49	51.6	19	87	9	MUC210V			lidless	with lid	30.2	18.6	MT210C,Y	MUCT210VC(E),Y	2.35	2.55
45	MUCT209VN,Y	49	16	34	116	102	74	143	87	16	72	29	20	49	49.2	19	82	10	MUC209V	28.1	16.4	MT209C,Y	MUCT209VC(E),Y	2.21	2.41
40	MUCT208VN,Y	49	16	33	113	102	74	142	87	16	72	29	20	49	49.2	19	81	9	MUC208V	24.9	14.3	MT208C,Y	MUCT208VC(E),Y	2.26	2.46
35	MUCT207VN,Y	37	12	30	101	89	58	127	77	13	56	22	18	37	42.9	17.5	70	8	MUC207V	22	12.3	MT207C,Y	MUCT207VC(E),Y	1.54	1.74
30	MUCT206VN,Y	36.5	12	27	101	89	52	111	69	10	50	22	18	37	38.1	15.9	65	9	MUC206V	16.7	9	MT206C,Y	MUCT206VC(E),Y	1.16	1.24
25	MUCT205VN,Y	32	12	22	87	76	46	96	61	10	44	19	18	32	34.1	14.3	61	9	MUC205V	11.9	6.3	MT205C,Y	MUCT205VC(E),Y	0.72	0.8
20	MUCT204VN,Y	32	12	21	87	76	46	92	60	10	44	19	18	32	31	12.7	55	8	MUC204V	10.9	5.3	MT204C,Y	MUCT204VC(E),Y	0.69	0.75
17	MUCT203VN,Y	32	12	21	87	76	46	92	60	10	44	19	18	32	31	12.7	55	8	MUC203V	10.9	5.3	MT204C,Y	MUCT203VC(E),Y	0.71	0.77
15	MUCT202VN,Y	32	12	21	87	76	46	92	60	10	44	19	18	32	31	12.7	55	8	MUC202V	10.9	5.3	MT204C,Y	MUCT202VC(E),Y	0.72	0.78
12	MUCT201VN,Y	32	12	21	87	76	46	92	60	10	44	19	18	32	31	12.7	55	8	MUC201V	10.9	5.3	MT204C,Y	MUCT201VC(E),Y	0.74	0.8

Total 10 items
