The BFL-type flanged bearing with set screws features an extended flange housing, providing a larger mounting surface for enhanced operational stability and vibration resistance. The set screws enable rapid locking, ensuring easy installation and removal whilst providing secure positioning. The bearing’s integrated seal offers reliable protection against dust and contamination, and delivers smooth operation. It is suitable for a wide range of general-purpose transmission equipment operating under light to medium loads where secure mounting is essential, offering versatility, practicality and durability.

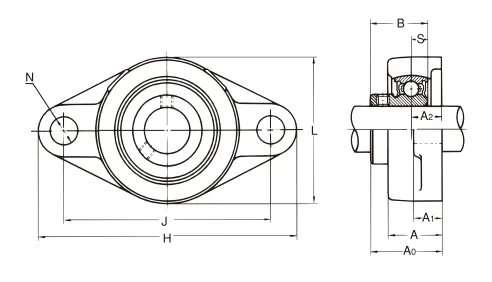

| Set screw long flange housing BFL Model specification table | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shaft diameter (mm) |
Unit model | H (mm) |
L (mm) |
A (mm) |
J (mm) |
N (mm) |
A₁ (mm) |
A₂ (mm) |
A₀ (mm) |
B (mm) |
S (mm) |
Installation bolt model | bearing model number | Cr (kN) |
Cor (kN) |
Bearing seat model | Unit weight (kg) |
| 35 | BFL207 | 161 | 90 | 34 | 130 | 16 | 16 | 19 | 43.4 | 32.9 | 8.5 | M14 | B7 | 25.9 | 15.4 | FL207 G00 | 1.2 |
| 30 | BFL206 | 148 | 80 | 31 | 117 | 16 | 14 | 18 | 40.3 | 30.3 | 8 | M14 | B6 | 19.6 | 11.3 | FL206 G00 | 0.84 |
| 25 | BFL205 | 130 | 68 | 27 | 99 | 16 | 14 | 16 | 35.5 | 27 | 7.5 | M14 | B5 | 14 | 7.9 | FL205 G00 | 0.56 |
| 20 | BFL204 | 113 | 60 | 25.5 | 90 | 12 | 12 | 15 | 32.7 | 24.7 | 7 | M10 | B4 | 12.8 | 6.6 | FL204 G00 | 0.38 |
