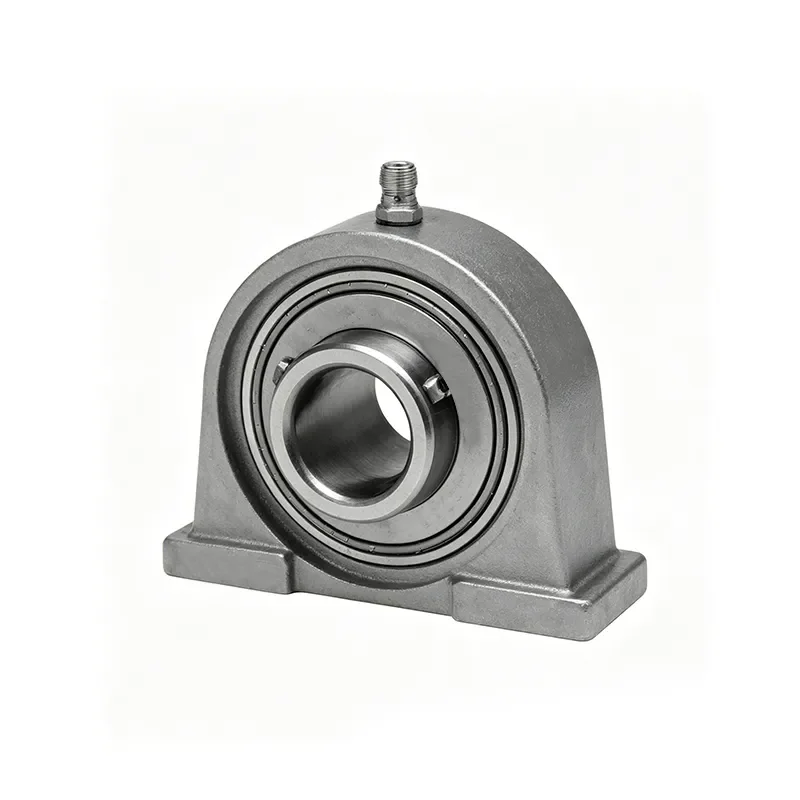

The MUCPA200VN and Y series of narrow-flange vertical-mount stainless steel spherical roller bearings feature a compact, narrow-flange housing design. Constructed entirely from stainless steel, they offer excellent rust and corrosion resistance, making them ideal for applications with limited space, such as damp environments and food-grade settings. The compact and robust narrow-flange housing ensures easy installation and space-saving benefits. Combined with the self-aligning capability of the spherical roller bearings, it effectively compensates for installation misalignment. With reliable sealing and smooth operation, these bearings are widely used in transmission applications within food processing machinery, automation equipment and light industrial machinery, where high standards of corrosion resistance, hygiene and space utilisation are required.

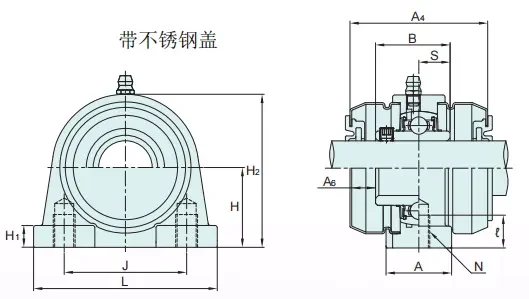

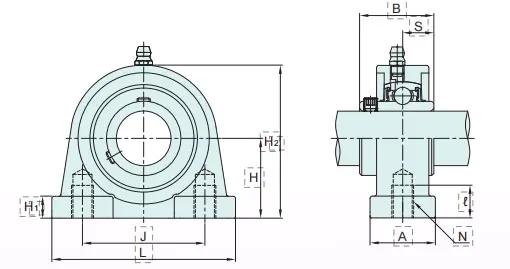

| shaft diameter (mm) |
Bearing unit type number | Main dimensions（mm） | Bearing | Bearing Seat Type Number | Type Bearing unit type number with protective cover Rubber sealed covers on both sides （Single side shaft end shield） |
Weight（kg） | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | L | A | J | N | e | H₁ | H₂ | B | S | A₄ | A₆ | Type number | Basic Rated Load(kN) | lidless | with lid | |||||
| Cr | Cor | |||||||||||||||||||
| 40 | MUCPA208VN,Y | 49.2 | 116 | 40 | 84 | M14×2 | 20 | 12 | 100 | 49.2 | 19 | 81 | 9 | MUC208V | 24.9 | 14.3 | MPA208C,Y | MUCPA208VC(E),Y | 1.59 | 1.79 |
| 35 | MUCPA207VN,Y | 47.6 | 110 | 38 | 80 | M14×2 | 20 | 12 | 94 | 42.9 | 17.5 | 70 | 8 | MUC207V | 22 | 12.3 | MPA207C,Y | MUCPA207VC(E),Y | 1.35 | 1.55 |
| 30 | MUCPA206VN,Y | 42.9 | 94 | 34 | 66 | M14×2 | 18 | 11 | 83 | 38.1 | 15.9 | 65 | 9 | MUC206V | 16.7 | 9 | MPA206C,Y | MUCPA206VC(E),Y | 0.96 | 1.04 |
| 25 | MUCPA205VN,Y | 36.5 | 84 | 30 | 56 | M10×1.5 | 15 | 10 | 70 | 34.1 | 14.3 | 63 | 10 | MUC205V | 11.9 | 6.3 | MPA205C,Y | MUCPA205VC(E),Y | 0.63 | 0.71 |
| 20 | MUCPA204VN,Y | 30.2 | 76 | 25.5 | 52 | M10×1.5 | 12 | 7 | 60.9 | 31 | 12.7 | 55 | 8 | MUC204V | 10.9 | 5.3 | MPA204C,Y | MUCPA204VC(E),Y | 0.44 | 0.5 |
| 17 | MUCPA203VN,Y | 30.2 | 76 | 25.5 | 52 | M10×1.5 | 12 | 7 | 60.9 | 31 | 12.7 | 55 | 8 | MUC203V | 10.9 | 5.3 | MPA204C,Y | MUCPA203VC(E),Y | 0.46 | 0.52 |
| 15 | MUCPA202VN,Y | 30.2 | 76 | 25.5 | 52 | M10×1.5 | 12 | 7 | 60.9 | 31 | 12.7 | 55 | 8 | MUC202V | 10.9 | 5.3 | MPA204C,Y | MUCPA202VC(E),Y | 0.47 | 0.53 |
| 12 | MUCPA201VN,Y | 30.2 | 76 | 25.5 | 52 | M10×1.5 | 12 | 7 | 60.9 | 31 | 12.7 | 55 | 8 | MUC201V | 10.9 | 5.3 | MPA204C,Y | MUCPA201VC(E),Y | 0.49 | 0.55 |
