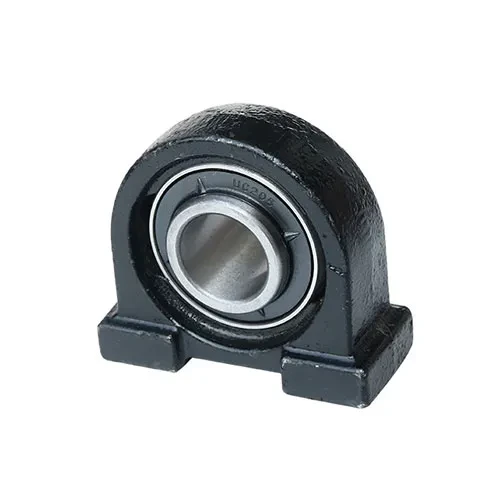

Vertical-mount flanged bearings feature a vertical base structure, providing a stable housing with uniform load distribution. They can be mounted directly onto a frame or platform using base bolts, ensuring simple assembly and reliable positioning. When used in conjunction with spherical roller bearings, they possess a certain degree of self-aligning capability, enabling them to compensate for installation errors and effectively withstand radial loads and minor axial forces. They offer excellent overall rigidity, strong sealing performance and stable operation. Primarily used in transmission components requiring vertical support, such as fans, pumps, conveying equipment and mixing units, they are widely used standard support components in industrial transmission systems.
| shaft diameter(mm) | Bearing unit type number | Main dimensions(mm) | Type number | Bearing | Bearing seat nominal type number | Weight of bearing with seat (kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Basic Rated Load(kN) | ||||||||||||||||
| H | L | A | J | N | e | H₁ | H2 | B | S | Cr | Cor | |||||
| 50 | UCPA210RT | 57.2 | 130 | 60 | 94 | M16×2 | 25 | 14 | 116 | 51.6 | 19 | UC210RT | 35.5 | 23.2 | PA210 | 2.44 |
| 45 | UCPA209RT | 54.2 | 120 | 54 | 90 | M14×2 | 25 | 12 | 108 | 49.2 | 19 | UC209RT | 33 | 20.5 | PA209 | 2.06 |
| 40 | UCPA208RT | 49.2 | 116 | 54 | 84 | M14×2 | 20 | 12 | 100 | 49.2 | 19 | UC208RT | 29.3 | 17.9 | PA208 | 1.84 |
| 35 | UCPA207RT | 47.6 | 110 | 48 | 80 | M14×2 | 20 | 12 | 95 | 42.9 | 17.5 | UC207RT | 25.9 | 15.4 | PA207 | 1.58 |
| 30 | UCPA206RT | 42.9 | 94 | 48 | 66 | M14×2 | 18 | 10 | 84 | 38.1 | 15.9 | UC206RT | 19.6 | 11.3 | PA206 | 1.02 |
| 25 | UCPA205RT | 36.5 | 84 | 38 | 56 | M10×1.5 | 15 | 10 | 72 | 34.1 | 14.3 | UC205RT | 14 | 7.9 | PA205 | 0.72 |
| 20 | UCPA204RD | 30.2 | 76 | 38 | 52 | M10×1.5 | 12 | 8 | 62 | 31 | 12.7 | UC204RD | 12.8 | 6.6 | PA204 | 0.50 |
| 17 | UCPA203RD | 30.2 | 76 | 38 | 52 | M10×1.5 | 12 | 8 | 62 | 31 | 12.7 | UC203RD | 12.8 | 6.6 | PA204 | 0.52 |
| 15 | UCPA202RD | 30.2 | 76 | 38 | 52 | M10×1.5 | 12 | 8 | 62 | 31 | 12.7 | UC202RD | 12.8 | 6.6 | PA204 | 0.53 |
| 12 | UCPA201RD | 30.2 | 76 | 38 | 52 | M10×1.5 | 12 | 8 | 62 | 31 | 12.7 | UC201RD | 12.8 | 6.6 | PA204 | 0.55 |
