The U-ER and MU-HER series of fixed-sleeve spherical roller bearings all feature an eccentric sleeve locking mechanism, which facilitates easy installation and removal. They provide reliable anti-loosening performance during unidirectional operation and effectively resist vibration. These products come with built-in seals to protect against dust and contamination. They feature self-aligning capabilities that compensate for installation misalignment, making them suitable for agricultural machinery, conveyors, and various general-purpose transmission equipment operating under light to medium loads at low speeds in a single direction. They offer a practical design and stable operation.

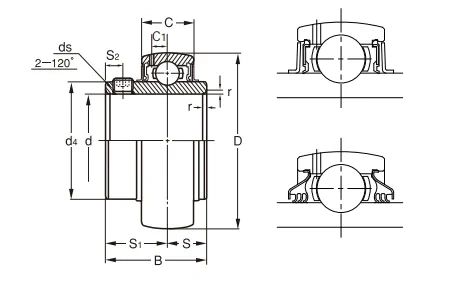

| Eccentric collar locking type U・ER type・MU・HER type Model specification table | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shaft diameter (mm) |
bearing model number | d (mm) |
D (mm) |
B₁ (mm) |
B (mm) |
C (mm) |
rsmin (mm) |
S (mm) |
d₁ (mm) |
B₂ (mm) |
ds | C₁ (mm) |
N₃ (mm) |
Cr (kN) |
Cor (kN) |
weight (kg) |
| 80 | ※UG316+ER | 80 | 170 | 106.4 | 81 | 44 | 2.5 | 40.5 | 118.7 | 31.8 | M16×1.5 | 14.5 | 7.6 | 123 | 86.4 | 6.6 |
| 75 | ※UG315+ER | 75 | 160 | 100 | 74.6 | 42 | 2.5 | 37.3 | 112 | 31.8 | M16×1.5 | 13.8 | 7.6 | 114 | 76.9 | 5.59 |
| 70 | ※UG314+ER | 70 | 150 | 92.1 | 68.3 | 40 | 2.5 | 34.1 | 101.2 | 30.2 | M14×1.5 | 13 | 7.6 | 104 | 68 | 4.43 |
| 65 | ※UG313+ER | 65 | 140 | 85.7 | 65.1 | 38 | 2.5 | 32.5 | 96.7 | 27 | M12×1.5 | 12.2 | 7.6 | 92.5 | 59.7 | 3.65 |
| 65 | UG213+ER | 65 | 120 | 85.7 | 68.2 | 27 | 2.1 | 34.1 | 91.6 | 23.8 | M12×1.5 | 8.3 | 6.8 | 57.5 | 40 | 2.32 |
| 60 | ※UG312+ER | 60 | 130 | 79.4 | 61.9 | 36 | 2.5 | 31 | 88.1 | 23.9 | M12×1.5 | 11.5 | 6.8 | 81.5 | 52 | 3.32 |
| 60 | UG212+ER | 60 | 110 | 77.8 | 61.9 | 26 | 2 | 31 | 83.8 | 22.3 | M12×1.5 | 7.7 | 6.8 | 52.5 | 36.1 | 1.7 |
| 55 | ※UG311+ER | 55 | 120 | 73 | 55.6 | 34 | 2.1 | 27.8 | 82.6 | 22.2 | M12×1.5 | 10.7 | 6.8 | 71.5 | 44.8 | 3.17 |
| 55 | UG211+ER | 55 | 100 | 66 | 55.5 | 24 | 2 | 27.8 | 75.8 | 20.7 | M12×1.5 | 7.3 | 6.8 | 43 | 29.4 | 1.26 |
| 50 | ※UG310+ER | 50 | 110 | 66 | 49.2 | 32 | 2.1 | 24.6 | 75.8 | 21.5 | M10×1.25 | 10 | 6 | 61.5 | 38.2 | 1.85 |
| 50 | UG210+ER | 50 | 90 | 62.7 | 49.2 | 23 | 1.5 | 24.6 | 69.5 | 18.3 | M10×1.25 | 6.5 | 6 | 35.5 | 23.2 | 0.91 |
| 45 | ※UG309+ER | 45 | 100 | 58.7 | 42.9 | 30 | 2 | 19.8 | 69.6 | 19.9 | M10×1.25 | 9 | 6 | 51.5 | 29.5 | 1.58 |
| 45 | UG209+ER | 45 | 85 | 56.3 | 42.8 | 22 | 1.5 | 21.4 | 63.4 | 18.3 | M10×1.25 | 6.5 | 6 | 33 | 20.5 | 0.79 |
| 40 | ※UG308+ER | 40 | 90 | 57.1 | 41.3 | 27 | 2 | 19.8 | 63.1 | 19.9 | M10×1.25 | 8.2 | 6 | 40.5 | 23.9 | 1.38 |
| 40 | UG208+ER | 40 | 80 | 56.3 | 42.8 | 21 | 1.5 | 21.4 | 59.9 | 18.3 | M10×1.25 | 6.2 | 6 | 29.3 | 17.9 | 0.76 |
| 35 | ※UG307+ER | 35 | 80 | 51.6 | 38.1 | 25 | 2 | 18.3 | 54.6 | 17.5 | M10×1.25 | 7.4 | 6 | 33.5 | 19.2 | 0.81 |
| 35 | UG207+ER | 35 | 72 | 51.1 | 37.6 | 20 | 1.5 | 18.8 | 55.4 | 17.5 | M10×1.25 | 5.8 | 6 | 25.9 | 15.4 | 0.6 |
| 30 | ※UG306+ER | 30 | 72 | 50 | 36.5 | 23 | 1.5 | 17.5 | 48.6 | 17.5 | M8×1 | 6.7 | 4.8 | 26.8 | 15 | 0.66 |
| 30 | UG206+ER | 30 | 62 | 48.4 | 36.5 | 19 | 1 | 18.3 | 44.4 | 15.9 | M8×1 | 5.1 | 5 | 19.6 | 11.3 | 0.37 |
| 25 | UG205+ER | 25 | 52 | 44.4 | 34.9 | 17 | 1 | 17.5 | 37.9 | 13.5 | M6×0.75 | 4.5 | 5 | 14 | 7.9 | 0.23 |
