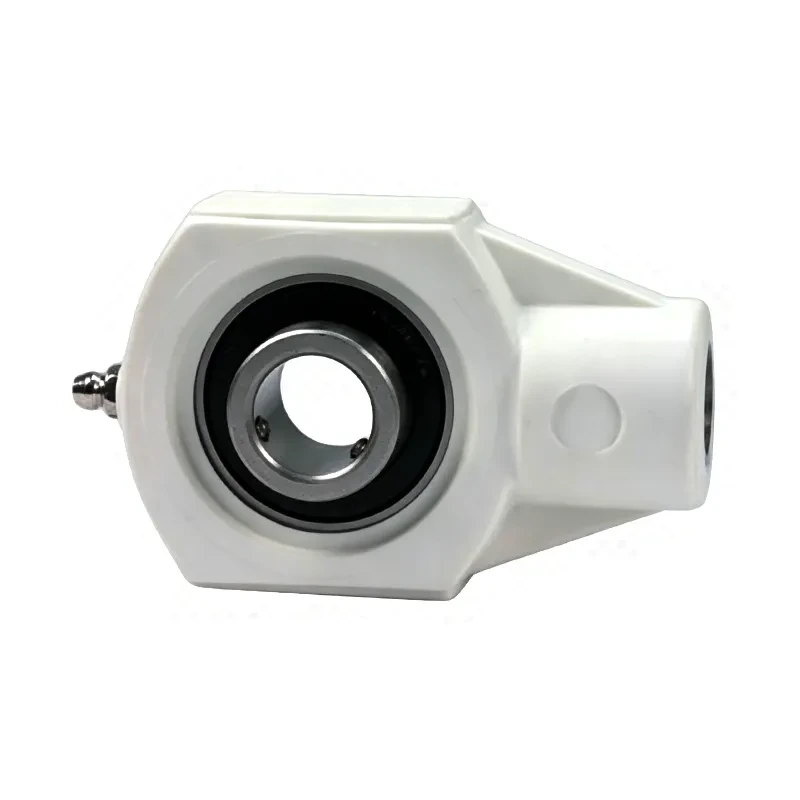

The eco-friendly series of suspended flanged bearings is manufactured using environmentally friendly materials and safe production processes, leaving no harmful residues. It is suitable for applications with high hygiene and environmental standards, such as the food, pharmaceutical and light industrial sectors. The diamond-shaped flange design is compact, requiring minimal installation space, and provides secure fastening, making it ideal for equipment with limited space. The eccentric ring locking mechanism is simple to operate, providing uniform and reliable locking that effectively prevents loosening during operation, whilst facilitating easy disassembly and maintenance. The bearings offer excellent self-aligning performance, compensating for installation and alignment errors. They operate smoothly with low noise levels and are wear-resistant and durable, making them widely used in transmission components requiring high operational stability, such as environmental protection equipment, automated conveyors and food processing machinery.
| shaft diameter (mm) |

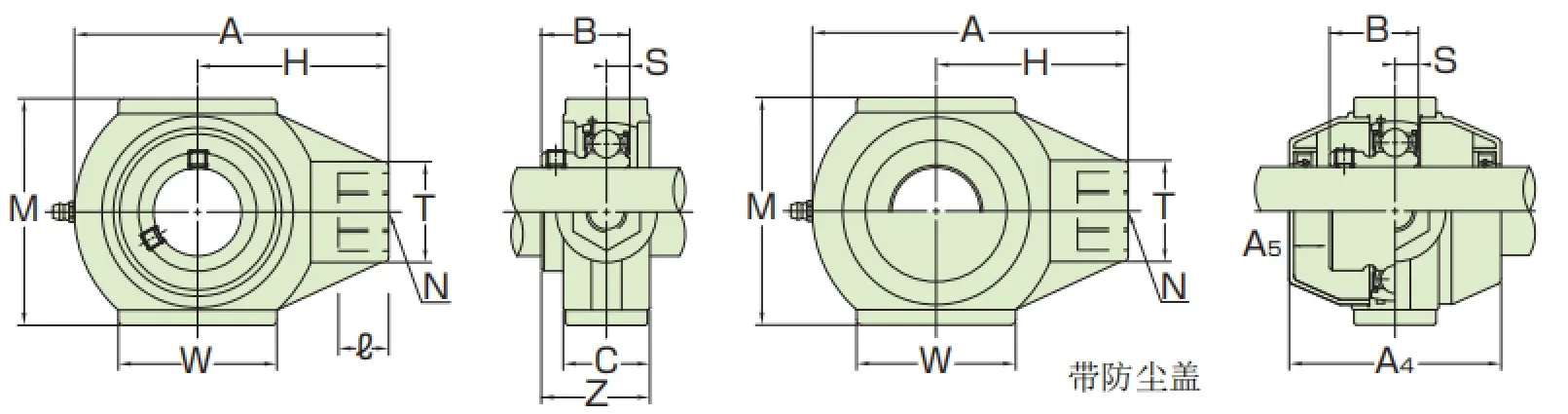

Bearing unit type number | Main dimensions（mm） | Basic Rated Load(kN) | Bearing Seat Type Number | Type Bearing unit type number with protective cover | Weight（kg） | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M | C | H | T | W | B | S | Z | N | e | A4 | A5 | Type number | Cr | Cor | Rubber sealed covers on both sides | Single side shaft end shield | lidless | with lid | |||
| 40 | MBHPL208V | 140 | 100 | 34 | 85 | 40 | 80 | 35.5 | 9 | 43.5 | M16×2 | 21 | 102 | 22 | MB8V | 24.9 | 14.3 | HPL208 | MBHPL208VC | MBHPL208VE | 0.82 | 0.88 |
| 35 | MBHPL207V | 125 | 90 | 34 | 76 | 40 | 63.5 | 32.9 | 8.5 | 41.4 | M16×2 | 21 | 91 | 18 | MB7V | 22 | 12.3 | HPL207 | MBHPL207VC | MBHPL207VE | 0.7 | 0.75 |
| 30 | MBHPL206V | 125 | 90 | 34 | 76 | 40 | 63.5 | 30.3 | 8 | 39.3 | M16×2 | 21 | 87 | 19 | MB6V | 16.7 | 9 | HPL206 | MBHPL206VC | MBHPL206VE | 0.49 | 0.53 |
| 25 | MBHPL205V | 99 | 74 | 27.5 | 64 | 36 | 46 | 27 | 7.5 | 33.3 | M16×2 | 21 | 72 | 14 | MB5V | 11.9 | 6.3 | HPL205 | MBHPL205VC | MBHPL205VE | 0.37 | 0.4 |
| 20 | MBHPL204V | 99 | 65 | 27.5 | 64 | 36 | 46 | 24.7 | 7 | 31.5 | M16×2 | 21 | 69 | 14 | MB4V | 10.9 | 5.3 | HPL204 | MBHPL204VC | MBHPL204VE | 0.31 | 0.34 |
