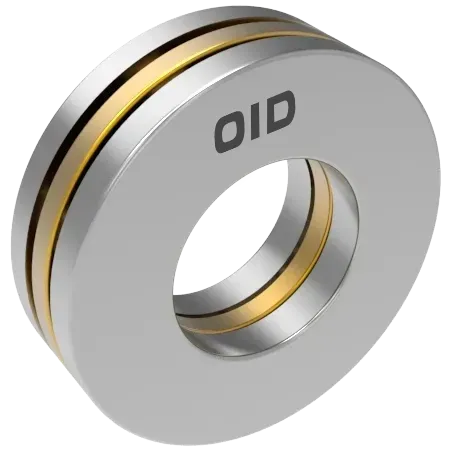

Bidirectional inner tapered roller thrust bearing for rolling mill, KDH (TDI) type bore110-1200mm

Bidirectional inner tapered roller thrust bearing for rolling mill, KDH (TDI) type bore110-1200mm

Tapered roller thrust bearings

Bidirectional inner tapered roller thrust bearing for rolling mill, KDH (TDI) type bore110-1200mm

Back

Overall dimensions（mm)						Rated load(KN)		Bearing code	keyway（mm）	Grooving				Regarding Installation Dimensions（mm）				constant	Axial load		Weight(kg)
d	D	B	C₂	γ₁(minimum)	γ₂(minimum)	C_a	C_0a	Bearing code	R_k	K_W(mm)	K_D(mm)	θquantity（°）	Quantityx Side	d_b	d_a	γ_a（maximum）	γ_b(maximum）	e	Y₂	Y₃	(Reference)
1200	1500	230	230	7.5	7.5	4650	25400	1200KDH1501	—	70.3	45	45	1x2	1253	1421	6	6	1.1	0.96	0.64	991
900	1220	340	340	2.5	6	5900	26900	900KDH1251	—	89.5	51	45	1x2	942	1141	5	2	0.78	1.3	0.86	1120
785	1150	285	285	3	6	5800	22700	785KDH1101	—	90	50	60	2x1	847	1072	5	2.5	0.87	1.2	0.78	966
685.8	939.8	234.95	227.813	3.3	6.4	3900	16200	* 685KDH9351	—	63.5	38.1	45	2x2	722	875	6.4	3.3	0.87	1.2	0.78	460
635.08	939.9	305.5	305.5	2.5	5	5400	20700	635KDH9301	—	70.3	50.8	45	1x2	690	862	4	2	0.87	1.2	0.78	726
635	940	260	260	3.3	6.4	5200	18800	635KDH9402	—	70.3	51	45	1x2	676	866	6.4	3.3	1.1	0.92	0.62	578
635	940	260	260	2.5	5	4700	17100	635KDH9401	—	70.3	51	45	1x2	678	872	4	2	0.87	1.2	0.78	592
600	1000	350	350	7.5	7.5	6800	24200	600KDH1001C+K	15	50	25	90	1x1	657	897	6	6	0.87	1.2	0.78	1120
560	820	242	242	4	6	3100	12000	560KDH8201	—	50	25	45	1x2	596	757	5	3	0.72	1.4	0.94	430
510.13	800	285	285	7.5	7.5	4450	15900	510KDH8003A	13	70	40	45	1x2	550	725	6	6	0.87	1.2	0.78	511
510	800	285	285	7.5	7.5	4450	15900	510KDH8001A	—	70	40	45	1x2	549	725	6	6	0.87	1.2	0.78	511
510	733.5	200.025	200.025	3.3	4.8	2530	10000	510KDH7301	—	50.8	38.1	45	2x2	546	677	4.8	3.3	0.82	1.2	0.82	270
500	820	256	256	7.5	7.5	3400	11000	500KDH8201+K	—	—	—	—	—	549	749	6	6	0.61	1.7	1.1	546
482.6	733.425	200	200	6.4	17.4	2710	9550	* 482KDH7351	—	50.8	19.05	90	2x2	518	660	17.4	6.4	0.78	1.3	0.87	285
480	689.5	180	180	6	6	2230	8150	480KDH6801+K	—	50	15	90	2x1	514	638	5	5	0.87	1.2	0.78	218
470	720	216	216	5	4	3050	10500	470KDH7201A+K	—	50	20	90	1x2	503	660	3	4	0.87	1.2	0.78	319
460	618	150	150	5	4	1670	6600	460KDH6101+K	—	50	15	90	2x2	484	575	3	4	1.1	0.96	0.64	123
450	830	288	320	7.5	7.5	5750	17900	450KDH8301A+K	14.5	50	20	90	2x2	505	733	6	6	1.1	0.96	0.64	745
450	820	300	300	7.5	7.5	5500	17000	450KDH8201+K	—	40	25	90	2x2	508	732	6	6	1.1	0.96	0.64	683
440	650	155	155	6	6	1930	6750	440KDH6501+K	—	50	15	90	1x2	475	599	5	5	0.87	1.2	0.78	178
