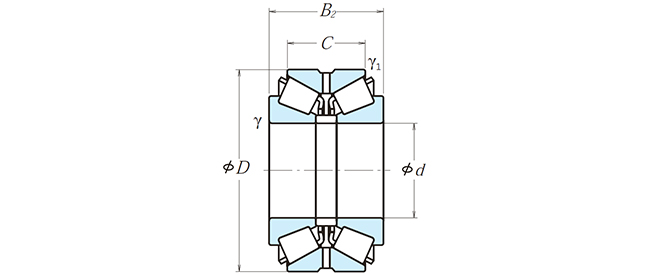

| Overall dimensions（mm) | Rated load(KN) | Rated load{kgf} | Bearing code | Installation dimensions(mm) | constant | Axial load Coefficient | Weight(kg) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

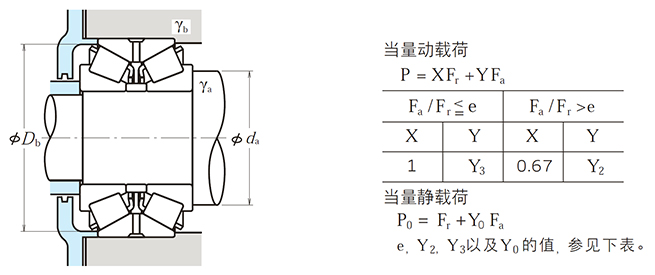

| d | D | B2 | C | γ (minimum) | γ1 （minimum） | Cr | Cor | Cr | Cor | da | db | γa (maximum) | γb (maximum) | e | Y2 | Y3 | Y0 | (Reference) | |
| 1450 | 1900 | 460 | 280 | 9.5 | 2 | 15000 | 48000 | 1530000 | 4900000 | 1450KDE1901+L | 1582 | 1868 | 8 | 2 | 0.83 | 1.2 | 0.81 | 0.79 | 3240 |
| 980 | 1200 | 150 | 100 | 6 | 3 | 2580 | 8350 | 263000 | 850000 | 980KDE1201+L | 1046 | 1177 | 5 | 2.5 | 0.68 | 1.5 | 0.99 | 0.97 | 341 |
| 950 | 1500 | 540 | 380 | 9.5 | 4 | 15500 | 44500 | 1580000 | 4500000 | 950KDE1501+L | 1120 | 1467 | 8 | 3 | 0.8 | 1.3 | 0.84 | 0.82 | 3510 |
| 850 | 1250 | 360 | 235 | 7.5 | 4 | 8650 | 21300 | 885000 | 2170000 | 850KDE1201+L | 949 | 1209 | 6 | 3 | 0.65 | 1.5 | 1 | 1 | 1320 |
| 780 | 1150 | 330 | 210 | 7.5 | 4 | 7450 | 18500 | 755000 | 1880000 | 780KDE1101+L | 874 | 1109 | 6 | 3 | 0.67 | 1.5 | 1 | 0.98 | 1040 |
| 1 | 30 | 280 | 210 | 7.5 | 4 | 6050 | 15100 | 615000 | 1540000 | 700KDE1002A+L | 790 | 1004 | 6 | 3 | 0.7 | 1.4 | 0.97 | 0.94 | 749 |
| 700 | 1030 | 250 | 210 | 7.5 | 4 | 5250 | 12600 | 535000 | 1290000 | 700KDE1001A+L | 786 | 1004 | 6 | 3 | 0.7 | 1.4 | 0.97 | 0.94 | 674 |
| 590 | 990 | 400 | 270 | 7.5 | 4 | 8600 | 19300 | 880000 | 1970000 | 590KDE9901+L | 695 | 954 | 6 | 3 | 0.67 | 1.5 | 1 | 0.98 | 1140 |
| 580 | 900 | 300 | 200 | 7.5 | 4 | 5950 | 13400 | 605000 | 1360000 | 580KDE9001A+L | 667 | 873 | 6 | 3 | 0.7 | 1.4 | 0.97 | 0.94 | 634 |
| 540 | 850 | 300 | 200 | 7.5 | 4 | 5750 | 12500 | 585000 | 1280000 | 540KDE8501+L | 623 | 824 | 6 | 3 | 0.65 | 1.5 | 1 | 1 | 575 |
| 420 | 622.3 | 240 | 135 | 7.5 | 1.5 | 2720 | 6350 | 278000 | 645000 | 420KDE6201A1+L | 493 | 610 | 6 | 1.5 | 1.3 | 0.8 | 0.54 | 0.52 | 232 |
| - | 820 | 295 | 180 | 7.5 | 4 | 5300 | 8950 | 545000 | 915000 | 400KDE8201+L | 498 | 775 | 6 | 3 | 0.61 | 1.7 | 1.1 | 1.1 | 638 |
| 400 | 650 | 280 | 180 | 6 | 2.5 | 3800 | 8400 | 385000 | 855000 | 400KDE6501+L | 478 | 628 | 5 | 2 | 0.87 | 1.2 | 0.78 | 0.76 | 340 |
| 370 | 680 | 280 | 188 | 7.5 | 4 | 4400 | 8500 | 450000 | 865000 | 370KDE6801E+L | 452 | 652 | 6 | 3 | 0.7 | 1.4 | 0.97 | 0.94 | 417 |
| 342.9 | 457.098 | 142.875 | 101.6 | 3.3 | 1.5 | 1170 | 3050 | 119000 | 310000 | * LM961548 / LM961511D+L | 378 | 444 | 3.3 | 1.5 | 0.71 | 1.4 | 0.95 | 0.93 | 59.4 |
| 317.5 | 622.3 | 304.8 | 174.625 | 14.3 | 3.3 | 3900 | 7550 | 395000 | 770000 | * H961649 / H961610D+L | 414 | 597 | 14.3 | 3.3 | 0.94 | 1.1 | 0.72 | 0.7 | 386 |
| 317.5 | 558.8 | 254 | 174 | 6 | 1.5 | 3500 | 7050 | 355000 | 715000 | 317KDE5501+L | 386 | 542 | 5 | 1.5 | 0.7 | 1.4 | 0.97 | 0.94 | 249 |
| 314.36 | 558.8 | 254 | 174 | 6 | 1.5 | 3500 | 7050 | 355000 | 715000 | 314KDE5501+L | 384 | 542 | 5 | 1.5 | 0.7 | 1.4 | 0.97 | 0.94 | 257 |
| 311.15 | 558.8 | 190.5 | 111.125 | 9.7 | 3.3 | 2140 | 4250 | 218000 | 435000 | * EE148122 / 148221D+L | 377 | 521 | 9.7 | 3.3 | 0.88 | 1.1 | 0.77 | 0.75 | 173 |
| 285.75 | 501.65 | 203.2 | 120.65 | 6.4 | 3.3 | 2160 | 4100 | 220000 | 420000 | * EE147112 / 147198D+L | 350 | 483 | 6.4 | 3.3 | 0.83 | 1.2 | 0.81 | 0.79 | 151 |
