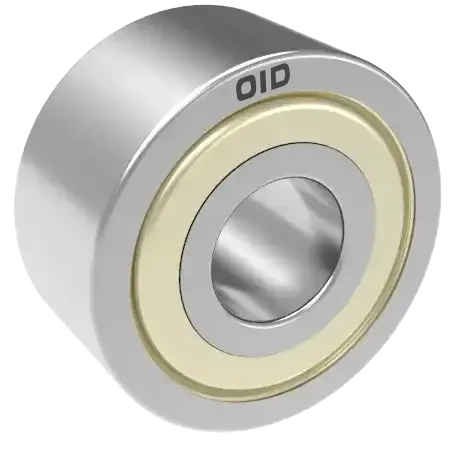

Metric series bore 5-9mm

Metric series bore 5-9mm

Metric series

Metric series bore 5-9mm

Back

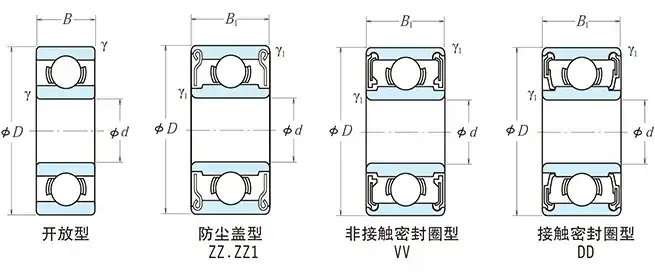

Overall dimensions（mm)						Rated load(N)		Rated load{kgf}		Rated speed min^-1			Bearing code				Installation dimensions(mm)						Weight(g)(Reference)
d	D	B	B₁	γ(minimum)	γ₁(minimum)	C_r	C_0r	C_r	C_0r	Grease lubrication Z·ZZ V·VV	D·DD	Oil lubricationZ	Open	Dust cover type	Non-contact Sealed type	Contact with Sealed Type	d_a（minimum）	d_b(maximum）	d_a(maximum）	D_b(minimum)	γ_a（maximum）	γ_b(maximum）	Open	Dust cover type
9	30	10	10	0.6	0.6	5100	2390	520	244	24000	-	30000	639	639ZZ	VV	—	13	16.1	26	25.6	0.6	0.6	36.5	36
9	26	8	8	(0.6)	(0.6)	4550	1970	465	201	28000	22000	34000	629	629ZZ	VV	DD	11	12.8	24	22.8	0.3	0.3	19.5	19.3
9	24	7	7	0.3	0.3	3350	1430	340	146	32000	24000	38000	609	609ZZ	VV	DD	11	12	22.8	20.5	0.3	0.3	14.5	14.7
9	20	6	6	0.3	0.3	1720	840	175	86	34000	24000	40000	699	699ZZ1	VV	DD	11	12	18	17.2	0.3	0.3	8.45	8.33
9	17	4	5	0.2	0.2	1330	665	136	68	36000	24000	43000	689	689ZZ1	VV	DD	10.6	11.5	15.4	15.2	0.2	0.2	3.53	4.43
8	28	9	9	0.3	0.3	4550	1970	465	201	28000	22000	34000	638	638ZZ1	VV	DD	10	12.8	26	22.8	0.3	0.3	28.3	28.6
8	24	8	8	0.3	0.3	3350	1430	340	146	28000	24000	34000	628	628ZZ	VV	DD	10	12	22	20.5	0.3	0.3	17.2	17.4
8	22	7	7	0.3	0.3	3300	1370	335	140	34000	28000	40000	608	608ZZ	VV	DD	10	10.5	20	19	0.3	0.3	12.1	12.2
8	19	6	6	0.3	0.3	2240	910	228	93	36000	28000	43000	698	698ZZ	VV	DD	10	10	17	16.5	0.3	0.3	7.23	7.18
8	16	4	5	0.2	0.2	1610	710	164	73	36000	28000	43000	688A	688AZZ1	VV	DD	9.6	10.2	14.4	14.2	0.2	0.2	3.12	4.02
8	14	3.5	4	0.2	0.15	820	385	83	39	38000	32000	45000	MR148	MR148ZZ	VV	DD	9.6	9.2	12.4	12.8	0.2	0.15	1.86	2.16
8	12	2.5	3.5	0.15	0.1	545	274	56	28	40000	-	48000	MR128	MR128ZZ1	—	—	9.2	9	10.8	11.3	0.15	0.1	0.71	0.97
7	26	9	9	0.3	0.3	4550	1970	465	201	28000	22000	34000	637	637ZZ1	VV	DD	9	12.8	24	22.8	0.3	0.3	24	25
7	22	7	7	0.3	0.3	3300	1370	335	140	30000	28000	36000	627	627ZZ	VV	DD	9	10.5	20	19	0.3	0.3	12.7	12.9
7	19	6	6	0.3	0.3	2340	885	238	90	36000	32000	43000	607	607ZZ1	VV	DD	9	9.1	17	16.5	0.3	0.3	7.67	7.51
7	17	5	5	0.3	0.3	1610	710	164	73	36000	28000	43000	697	697ZZ1	VV	DD	9	10.2	15	14.8	0.3	0.3	5.26	5.12
7	14	3.5	5	0.15	0.15	1170	510	120	52	40000	34000	45000	687	687ZZ1	VV	DD	8.2	8.5	12.8	12.7	0.15	0.15	2.13	2.97
7	13	3	4	0.2	0.15	540	276	55	28	40000	-	48000	MR137	MR137ZZ	—	—	8.6	9	11.4	11.6	0.2	0.15	1.58	2.02
7	11	2.5	3	0.15	0.1	455	201	47	21	43000	-	50000	MR117	MR117ZZ	—	—	8.2	8	9.8	10.5	0.15	0.1	0.62	0.72
6	22	7	7	0.3	0.3	3300	1370	335	140	30000	28000	36000	636	636ZZ	VV	DD	8	10.5	20	19	0.3	0.3	14	14

Total 36 items
