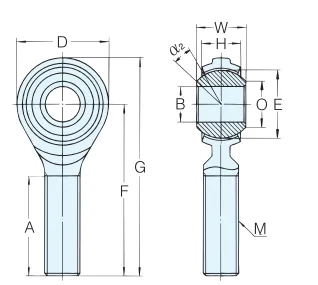

| Type number FBM ·FDM | Main dimensions（mm） | allow angle of inclination α2(°) | Minimum stillness Destroy radial load (kN) |
Extreme load(kN) | Weight(g) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | W | H | O | D | F | G | A | E | M | Radial load | Axial load | ||||
| FDM22 | 22 | 28 | 20 | 25.8 | 50 | 84 | 109 | 51 | 38.1 | M22×1.5 | 15 | 52 | 34.8 | 13.2 | 381 |
| FDM20 | 20 | 25 | 18 | 24.4 | 46 | 78 | 101 | 47 | 34.93 | M20×1.5 | 14 | 44.1 | 29.4 | 11.3 | 292 |
| FDM18 | 18 | 23 | 17 | 21.9 | 42 | 72 | 93 | 44 | 51.75 | M18×1.5 | 14 | 37.2 | 25 | 9.3 | 222 |
| FDM16 | 16 | 21 | 15 | 19.4 | 38 | 66 | 85 | 40 | 28.58 | M16×2 | 15 | 30.9 | 20.6 | 7.8 | 159 |
| FDM14 | 14 | 19 | 14 | 16.9 | 34 | 60 | 77 | 36 | 25.4 | M14×2 | 14 | 25 | 16.7 | 6.4 | 115 |
| FDM12 | 12 | 16 | 12 | 15.4 | 30 | 54 | 69 | 33 | 22.23 | M12×1.75 | 13 | 19.1 | 12.7 | 4.9 | 76 |
| FDM10 | 10 | 14 | 11 | 12.9 | 26 | 48 | 61 | 29 | 19.05 | M10×1.5 | 12 | 15.2 | 10.3 | 3.9 | 48 |
| FDM8 | 8 | 12 | 9 | 10.4 | 22 | 42 | 53 | 25 | 15.88 | M8×1.25 | 14 | 10.8 | 7.4 | 2.9 | 30 |
| FDM6 | 6 | 9 | 7 | 9 | 18 | 36 | 45 | 22 | 12.7 | M6×1 | 11 | 5.9 | 3.9 | 1.5 | 15 |
| FDM5 | 5 | 8 | 7 | 7.7 | 16 | 33 | 41 | 20 | 11.11 | M 5×0.8 | 7 | 3.9 | 2.4 | 1 | 11 |
| FBM22 | 22 | 28 | 20 | 25.8 | 50 | 84 | 109 | 51 | 38.1 | M22×1.5 | 15 | 52 | 34.8 | 13.2 | 381 |
| FBM20 | 20 | 25 | 18 | 24.4 | 46 | 78 | 101 | 47 | 34.93 | M20×1.5 | 14 | 44.1 | 29.4 | 11.3 | 292 |
| FBM18 | 18 | 23 | 17 | 21.9 | 42 | 72 | 93 | 44 | 51.75 | M18×1.5 | 14 | 37.2 | 25 | 9.3 | 222 |
| FBM16 | 16 | 21 | 15 | 19.4 | 38 | 66 | 85 | 40 | 28.58 | M16×2 | 15 | 30.9 | 20.6 | 7.8 | 159 |
| FBM14 | 14 | 19 | 14 | 16.9 | 34 | 60 | 77 | 36 | 25.4 | M14×2 | 14 | 25 | 16.7 | 6.4 | 115 |
| FBM12 | 12 | 16 | 12 | 15.4 | 30 | 54 | 69 | 33 | 22.23 | M12×1.75 | 13 | 19.1 | 12.7 | 4.9 | 76 |
| FBM10 | 10 | 14 | 11 | 12.9 | 26 | 48 | 61 | 29 | 19.05 | M10×1.5 | 12 | 15.2 | 10.3 | 3.9 | 48 |
| FBM8 | 8 | 12 | 9 | 10.4 | 22 | 42 | 53 | 25 | 15.88 | M8×1.25 | 14 | 10.8 | 7.4 | 2.9 | 30 |
| FBM6 | 6 | 9 | 7 | 9 | 18 | 36 | 45 | 22 | 12.7 | M6×1 | 11 | 5.9 | 3.9 | 1.5 | 15 |
| FBM5 | 5 | 8 | 7 | 7.7 | 16 | 33 | 41 | 20 | 11.11 | M 5×0.8 | 7 | 3.9 | 2.4 | 1 | 11 |
