The cast iron angular eccentric UGF flanged bearing features a high-strength cast iron angular housing, offering excellent rigidity and high impact resistance, making it suitable for right-angle mounting on side walls. Secured by an eccentric sleeve, it is easy to install and reliably prevents loosening. It also features self-aligning capabilities, effectively compensating for installation errors. The integrated sealing design is comprehensive, offering protection against dust and contamination, and allowing for relubrication. Suitable for medium to heavy-duty, low-speed, unidirectional applications in conveying systems, agricultural machinery, mining and construction machinery, these bearings deliver stable operation and outstanding durability.

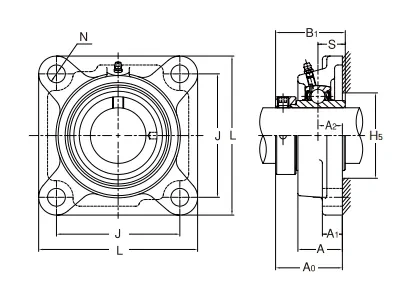

| Cast iron angular eccentric type UGF Model specification table | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shaft diameter (mm) |
Unit model | L (mm) |
A (mm) |
J (mm) |
N (mm) |
A₁ (mm) |
A₂ (mm) |
A₀ (mm) |
H₅(Min) (mm) |
B₁ (mm) |
S (mm) |
Installation bolt model | bearing model number | Radial Basic Rating Dynamic load Cr (kN) |
Radial Basic Rating static load Cor (kN) |
Bearing seat model | Unit weight (kg) |
| 65 | UGF213 | 187 | 50 | 149 | 19 | 20 | 30 | 81.6 | 84 | 85.7 | 34.1 | M16 | UG213+ER | 57.5 | 40 | F213 | 5.59 |
| 60 | UGF212 | 175 | 48 | 143 | 19 | 20 | 29 | 75.8 | 79 | 77.8 | 31 | M16 | UG212+ER | 52.5 | 36.1 | F212 | 4.3 |
| 55 | UGF211 | 162 | 43 | 130 | 19 | 20 | 25 | 68.6 | 72 | 71.4 | 27.8 | M16 | UG211+ER | 43 | 29.4 | F211 | 3.6 |
| 50 | UGF210 | 143 | 40 | 111 | 16 | 18 | 22 | 60.1 | 65 | 62.7 | 24.6 | M14 | UG210+ER | 35.5 | 23.2 | F210 | 2.5 |
| 45 | UGF209 | 137 | 38 | 105 | 16 | 18 | 22 | 56.9 | - | 56.3 | 21.4 | M14 | UG209+ER | 33 | 20.5 | F209 | 2.19 |
| 40 | UGF208 | 130 | 36 | 102 | 16 | 16 | 21 | 55.9 | 55 | 56.3 | 21.4 | M14 | UG208+ER | 29.3 | 17.9 | F208 | 1.9 |
| 35 | UGF207 | 117 | 34 | 92 | 14 | 16 | 19 | 51.3 | - | 51.1 | 18.8 | M12 | UG207+ER | 25.9 | 15.4 | F207 | 1.5 |
| 30 | UGF206 | 108 | 31 | 83 | 12 | 14 | 18 | 48.1 | 42 | 48.4 | 18.3 | M10 | UG206+ER | 19.6 | 11.3 | F206 | 1.1 |
| 25 | UGF205 | 95 | 27 | 70 | 12 | 14 | 16 | 42.9 | 36 | 44.4 | 17.5 | M10 | UG205+ER | 14 | 7.9 | F205 | 0.76 |
| 20 | UGF204 | 86 | 25.5 | 64 | 12 | 12 | 15 | 41.6 | 31 | 43.7 | 17.1 | M10 | UG204+ER | 12.8 | 6.6 | F204 | 0.63 |
