Slide-type bearing units feature a compact design, excellent self-aligning capabilities and flexible, convenient installation, and can accommodate certain installation errors and shaft misalignment. Manufactured from environmentally friendly materials, they are safe and hygienic, making them suitable for applications with high hygiene standards, such as the food, pharmaceutical and light industrial sectors. The slide-type design facilitates fine positioning adjustments, whilst offering simple assembly and maintenance. They operate smoothly, produce low noise and are highly durable, and are widely used in transmission applications such as automated equipment, conveyor machinery, textiles and food processing.
| shaft diameter (mm) |

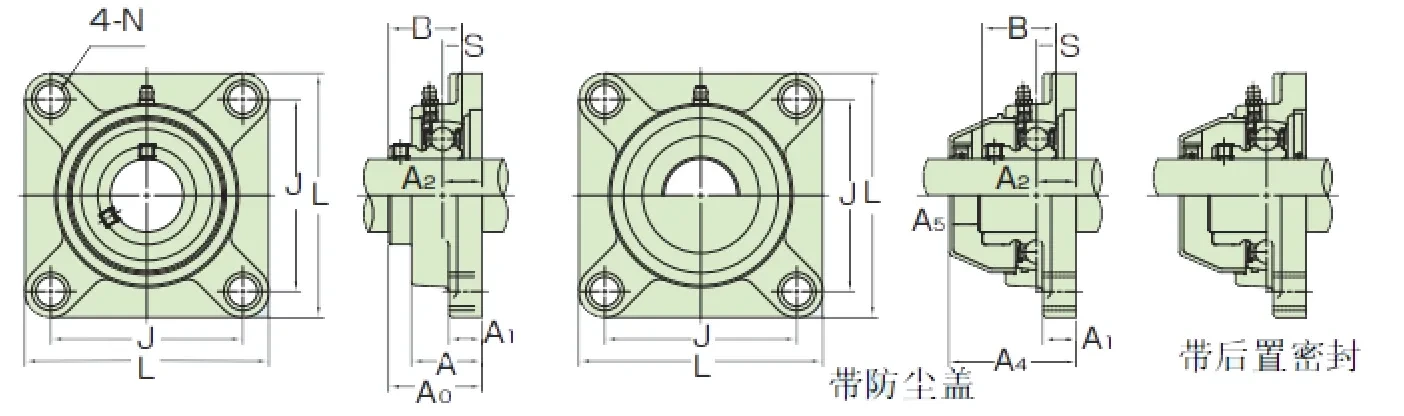

Bearing unit type number | Main dimensions(mm) | Basic Rated Load(kN) | Bearing Seat Type Number | Type Bearing unit type number with protective cover | Weight(kg) | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C | C | D | H | M | T | W | B | S | Z | N | e | A4 | A5 | Type number | Cr | Cor | Rubber sealed covers on both sides | Single side shaft end shield | lidless | with lid | |||
| 40 | MBTPL208V | 140 | 114 | 34 | 16 | 85 | 102 | 40 | 80 | 35.5 | 9 | 43.8 | M16×2 | 21 | 102 | 22 | MB8V | 24.9 | 14.3 | TPL208 | MBTPL208VC | MBTPL208VE | 0.82 | 0.88 |
| 35 | MBTPL207V | 125 | 102.5 | 34 | 12 | 76 | 89 | 40 | 63.5 | 32.9 | 8.5 | 41.7 | M16×2 | 21 | 91 | 18 | MB7V | 22 | 12.3 | TPL207 | MBTPL207VC | MBTPL207VE | 0.7 | 0.75 |
| 30 | MBTPL206V | 125 | 102.5 | 34 | 12 | 76 | 89 | 40 | 63.5 | 30.3 | 8 | 39.6 | M16×2 | 21 | 87 | 19 | MB6V | 16.7 | 9 | TPL206 | MBTPL206VC | MBTPL206VE | 0.49 | 0.53 |
| 25 | MBTPL205V | 99 | 89 | 27.5 | 12 | 64 | 76 | 36 | 46 | 27 | 7.5 | 33.3 | M16×2 | 21 | 72 | 14 | MB5V | 11.9 | 6.3 | TPL205 | MBTPL205VC | MBTPL205VE | 0.37 | 0.4 |
| 20 | MBTPL204V | 99 | 89 | 27.5 | 12 | 64 | 76 | 36 | 46 | 24.7 | 7 | 31.5 | M16×2 | 21 | 69 | 14 | MB4V | 10.9 | 5.3 | TPL204 | MBTPL204VC | MBTPL204VE | 0.31 | 0.34 |
