Vertical outer spherical bearings feature a robust structure and excellent load-bearing capacity. Designed for vertical installation, they offer reliable positioning and easy installation, making them suitable for a wide range of general-purpose transmission equipment. These bearings incorporate a self-aligning function that effectively compensates for installation errors, ensuring smooth and durable operation. Widely used in agricultural machinery, conveyor lines, textile machinery, fans and pumps, they serve as a common and reliable support component in industrial transmission systems.
| shaft diameter (mm) |
Bearing unit type number | Main dimensions(mm) | Installation bolt specification | Basic Rated Load(kN) | Bearing Seat Type Number | Type number with stainless steel cover Rubber sealed covers on both sides (Single side shaft end shield) |
Weight(kg) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

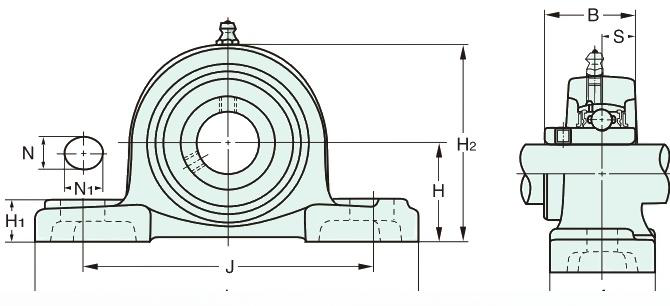

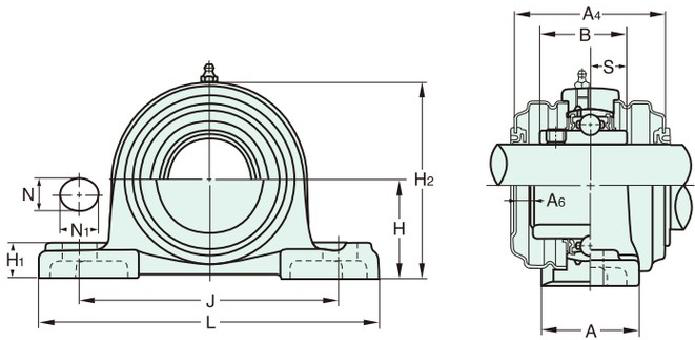

| H | L | A | J | N | N1 | H1 | H2 | B | S | A4 | A6 | Type number | Cr | Cor | standard | Compatible with stainless steel cover | lidless | with lid | ||||
| 40 | MUCAP208V-J | 49.2 | 184 | 137 | 54 | 17 | 25 | 19 | 100 | 49.2 | 19 | 82 | 10 | M14 | MUC 208V | 24.9 | 14.3 | AP208J | AP208C-J | MUCAP208VC(E)-J | 1.09 | 1.17 |
| 35 | MUCAP207V-J | 47.6 | 167 | 127 | 48 | 17 | 21 | 19 | 94 | 42.9 | 17.5 | 70 | 8 | M14 | MUC 207V | 22 | 12.3 | AP207J | AP207C-J | MUCAP207VC(E)-J | 0.88 | 0.91 |
| 30 | MUCAP206V-J | 42.9 | 165 | 121 | 48 | 17 | 21 | 18 | 83 | 38.1 | 15.9 | 65 | 9 | M14 | MUC 206V | 16.7 | 9 | AP206J | AP206C-J | MUCAP206VC(E)-J | 0.65 | 0.69 |
| 25 | MUCAP205V-J | 36.5 | 140 | 105 | 38 | 13 | 16 | 16 | 70 | 34.1 | 14.3 | 63 | 10 | M10 | MUC 205V | 11.9 | 6.3 | AP205J | AP205C-J | MUCAP205VC(E)-J | 0.41 | 0.43 |
| 20 | MUCAP204V-J | 33.3 | 127 | 95 | 38 | 13 | 19 | 15 | 65 | 31 | 12.7 | 56 | 8 | M10 | MUC 204V | 10.9 | 5.3 | AP204J | AP204C-J | MUCAP204VC(E)-J | 0.34 | 0.36 |
