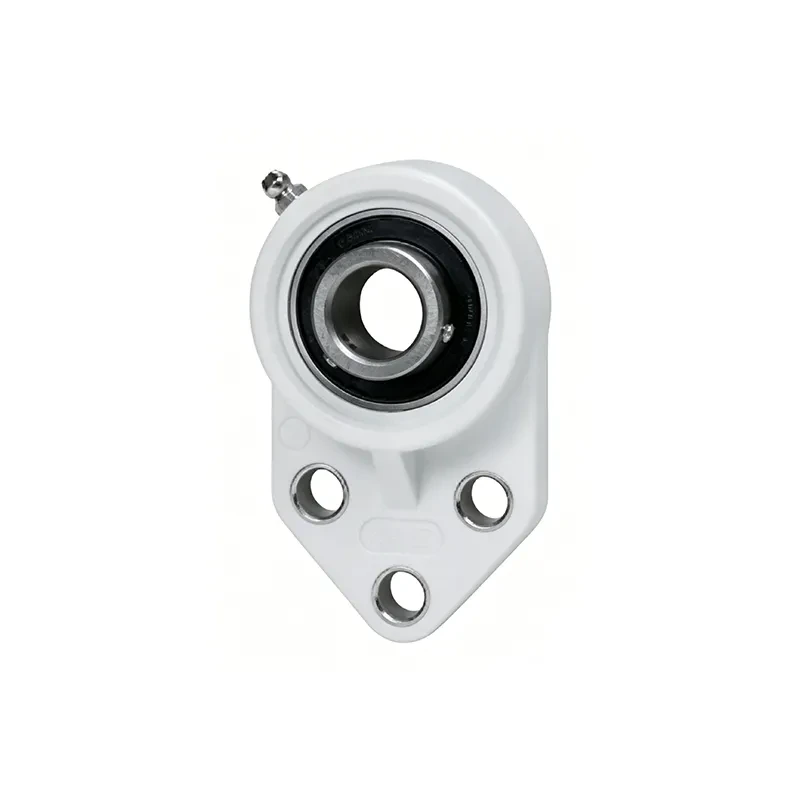

The Diamond Flange Bearing Environmental Protection Series is manufactured from eco-friendly materials, ensuring safety and the absence of harmful substances. It is suitable for applications with high hygiene requirements, such as the food, pharmaceutical and light industrial sectors. The diamond flange design is compact, takes up minimal space, and is both easy to install and securely fixed. The eccentric ring locking mechanism is simple to operate, provides reliable locking, resists loosening, and facilitates routine disassembly and maintenance. The bearings possess excellent self-aligning capabilities, compensating for installation errors, and offer smooth operation, low noise, and high wear resistance. They are widely used in transmission components of environmental protection equipment, automated production lines, and food processing machinery where environmental compliance and operational stability are paramount.
| shaft diameter (mm) |
Bearing unit type number | Main dimensions（mm） | Installation bolt specification | Basic Rated Load(kN) | Bearing Seat Type Number | Type Bearing unit type number with protective cover | Weight（kg） | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

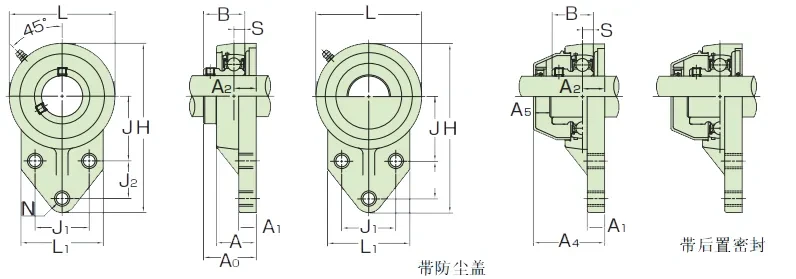

| H | L | J | J1 | J2 | A1 | A | N | L1 | A2 | A0 | B | S | A4 | A5 | Type number | Cr | Cor | Equipped with rubber sealing cover | Shaft end cover | lidless | with lid | ||||
| 35 | MBFBL207V | 157 | 95 | 60.3 | 50.8 | 31.8 | 16.1 | 36.5 | 13.1 | 89 | 21.7 | 46.1 | 32.9 | 8.5 | 66 | 17 | M12 | MB7V | 22 | 12.3 | FBL207 | MBFBL207VC | MBFBL207VE | 0.56 | 0.59 |
| 30 | MBFBL206V | 138.5 | 83 | 52.4 | 47.6 | 31.8 | 13.3 | 32 | 10.7 | 76 | 19.3 | 41.6 | 30.3 | 8 | 59 | 15 | M10 | MB6V | 16.7 | 9 | FBL206 | MBFBL206VC | MBFBL206VE | 0.4 | 0.42 |
| 25 | MBFBL205V | 120.6 | 70 | 46 | 41.3 | 28.6 | 11.4 | 34 | 10.7 | 63.5 | 21.8 | 41.3 | 27 | 7.5 | 57 | 13 | M10 | MB5V | 11.9 | 6.3 | FBL205 | MBFBL205VC | MBFBL205VE | 0.27 | 0.29 |
| 20 | MBFBL204V | 108 | 63.5 | 42.9 | 38.1 | 22.2 | 11.4 | 25.5 | 10.7 | 62 | 15.4 | 33.1 | 24.7 | 7 | 46 | 10 | M10 | MB4V | 10.9 | 5.3 | FBL204 | MBFBL204VC | MBFBL204VE | 0.21 | 0.23 |
