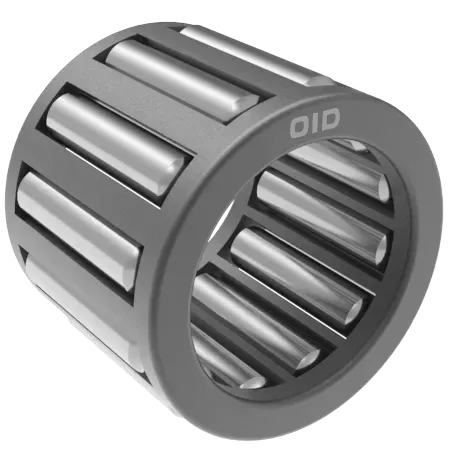

Needle roller and cage assembly (FWF FWJ) inscribed circle diameter 5-100mm

Back

Overall dimensions（mm)			Rated load(N)		Rated load{kgf}		Extreme speed(rpm)		Bearing code	Weight(kg)
F_W	E_W	B_c^-0.2_-0.55	C_r	C_0r	C_r	C_0r	Grease lubrication	Oil lubrication	Bearing code	(Reference)
100	108	30	75500	201000	7700	20500	2400	4000	FWF-10010830	185
95	103	30	69500	177000	7100	18100	2600	4300	FWF-9510330	175
90	98	30	70000	177000	7150	18000	2800	4500	FWF-909830	160
85	93	30	71000	176000	7250	17900	3000	4800	FWF-859330	150
80	88	30	69000	166000	7050	17000	3200	5000	FWF-808830	145
75	83	30	65000	151000	6650	15400	3400	5600	FWF-758330	135
70	78	30	63000	140000	6400	14300	3600	6000	FWF-707830	125
65	73	30	61000	132000	6200	13400	4000	6300	FWF-657330	120
60	68	25	52000	105000	5300	10700	4300	6700	FWF-606825	91
60	66	30	50000	122000	5100	12400	4300	6700	FWF-606630	87
60	66	20	33000	71500	3350	7300	4300	6700	FWF-606620	57
55	63	25	50000	97500	5100	9950	4800	7500	FWF-556325	85
55	61	30	47000	109000	4750	11100	4500	7500	FWF-556130	81
55	61	20	31000	64000	3150	6500	4500	7500	FWF-556120	53
50	58	25	48500	90500	4950	9200	5300	8500	FWF-505825	77
50	55	27	35000	83000	3600	8450	5000	8000	FWF-505527	50
50	55	20	26900	59000	2750	6050	5000	8000	FWF-505520	37
45	53	25	44000	77000	4500	7850	5600	9500	FWF-455325	62
45	50	27	34000	77500	3500	7900	5600	9000	FWF-455027	41
45	50	17	21600	43000	2200	4350	5600	9000	FWF-455017	26
