Square flanged mounted bearings feature a compact design and secure mounting. Their flanged construction facilitates precise alignment and stable load-bearing capacity when fixed to equipment end faces. With built-in self-aligning capabilities, these bearings effectively compensate for installation misalignment and are suitable for a wide range of operating conditions. They are easy to install and remove, offering high versatility, and are widely used in automation equipment, conveying machinery, textiles, agricultural machinery and other sectors, serving as reliable support components in transmission systems.
| shaft diameter (mm) |
Bearing unit type number | Main dimensions（mm） | Installation bolt specification | Basic Rated Load(kN) | Bearing Seat Type Number | Type number with stainless steel cover With rubber sealing cover （Shaft end shield） |
Weight（kg） | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

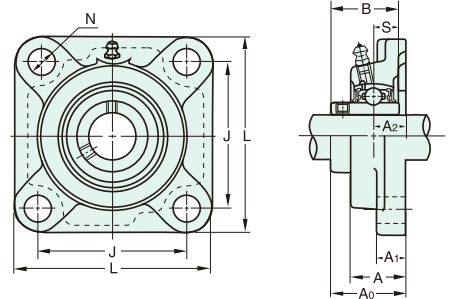

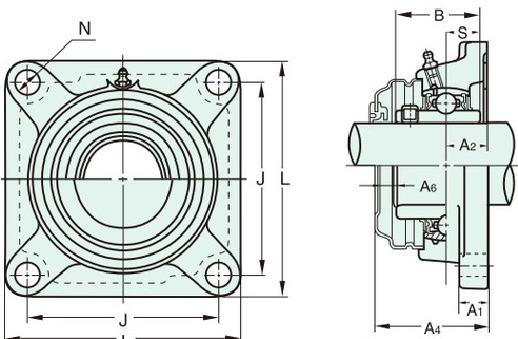

| L | J | A2 | A1 | A | N | Ao | B | S | A4 | A6 | Type number | Cr | Cor | standard | Compatible with stainless steel cover | lidless | with lid | |||||
| 40 | MUCAF208V-J | 130 | 102 | 21 | 16 | 36 | 16 | 51.2 | 49.2 | 19 | 62 | 10 | M14 | MUC 208V | 24.9 | 14.3 | AF208J | AF208C-J | MUCAF208VC(E)-J | 1.06 | 1.16 | |
| 35 | MUCAF207V-J | 117 | 92 | 19 | 16 | 34 | 14 | 44.4 | 42.9 | 17.5 | 54 | 8 | M12 | MUC 207V | 22 | 12.3 | AF207J | AF207C-J | MUCAF207VC(E)-J | 0.85 | 0.89 | |
| 30 | MUCAF206V-J | 108 | 83 | 18 | 13.5 | 31 | 12 | 40.2 | 38.1 | 15.9 | 51 | 9 | M10 | MUC 206V | 16.7 | 9 | AF206J | AF206C-J | MUCAF206VC(E)-J | 0.57 | 0.64 | |
| 25 | MUCAF205V-J | 95 | 70 | 16 | 14 | 27 | 12 | 35.8 | 34.1 | 14.3 | 47 | 9 | M10 | MUC 205V | 11.9 | 6.3 | AF205J | AF205C-J | MUCAF205VC(E)-J | 0.4 | 0.44 | |
| 20 | MUCAF204V-J | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | 43 | 8 | M10 | MUC 204V | 10.9 | 5.3 | AF204J | AF204C-J | MUCAF204VC (E)J | 0.31 | 0.34 | |
| 17 | MUCAF203V-J | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | 43 | 8 | M10 | MUC 203V | 10.9 | 5.3 | AF204J | AF204C-J | MUCAF203VC(E)-J | 0.33 | 0.36 | |
| 15 | MUCAF202V-J | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | 43 | 8 | M10 | MUC 202V | 10.9 | 5.3 | AF204J | AF204C-J | MUCAF202VC(E)-J | 0.34 | 0.37 | |
| 12 | MUCAF201V-J | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | 43 | 8 | M10 | MUC 201V | 10.9 | 5.3 | AF204J | AF204C-J | MUCAF201VC(E)-J | 0.36 | 0.39 | |
