The vertical eccentric sleeve bearing unit features a robust structure and is easy to install. Utilising an eccentric sleeve locking mechanism, it allows for rapid tightening of the shaft and bearing, as well as fine-tuning of concentricity, thereby significantly reducing assembly complexity. The vertical base offers excellent support and distributes loads evenly. The unit as a whole possesses superior self-aligning capabilities and impact resistance, ensuring smooth operation, low noise levels and high durability. It is widely applicable to agricultural machinery, conveying equipment, textile machinery, mixers and various general-purpose transmission equipment, and is particularly suitable for applications requiring rapid installation, frequent maintenance and alignment adjustments.
| shaft diameter (mm) |
Bearing unit type number | Main dimensions（mm） | Installation bolt specification | Basic Rated Load(kN) | Bearing Seat Type Number | Bearing unit type number with protective cover | Type number with stainless steel cover | Weight（kg） | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

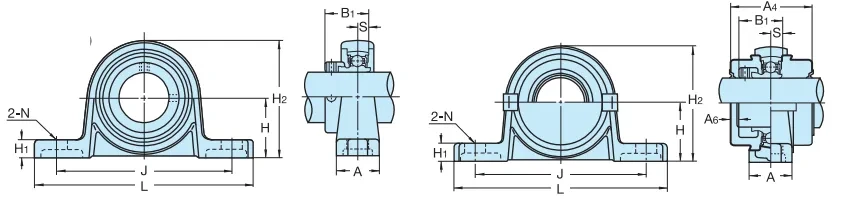

| H | L | A | L | A | N | H1 | B1 | S | A4 | A6 | Type number | Cr | Cor | Equipped with rubber sealing cover （Single side shaft end shield） |
Equipped with rubber sealing cover | Shaft end shield | lidless | with lid | ||||
| 30 | MUP006,X | 36 | 132 | 26 | 106 | 13 | 11 | 70 | 26.5 | 6.5 | 49 | 4 | M10 | MU006,X+ER | 11.3 | 6.6 | P06-7Z3 | MUP006C(E),Y | 06-7CP30,Y | 06-7CPE,Y | 454 | 480 |
| 25 | MUP005,X | 32 | 112 | 20 | 90 | 10 | 10 | 61.5 | 25.5 | 6 | 47 | 3 | M8 | MU005,X+ER | 8.6 | 4.65 | P05-6Z3 | MUP005C(E),X | 05-6CP25 | 05-6CPE | 294 | 315 |
| 20 | MUP004.X | 28 | 100 | 20 | 80 | 10 | 9 | 54.5 | 24.5 | 6 | 45 | 3 | M8 | MU004,X+ER | Z9 | 4 | P04-5Z3 | MUP004C(E),X | 04-5CP20 | 04-5CPE | 230 | 250 |
| 17 | MUP003.X | 24 | 85 | 18 | 67 | 7 | 7 | 47 | 20.5 | 5 | 37 | 2 | M6 | MU003,X+ER | 5.1 | 2.65 | P003Z3 | MUP003C(E),X | 003CP17 | 003CPE | 156 | 170 |
| 15 | MUP002,X | 22 | 80 | 16 | 63 | 7 | 43 | 18.5 | 4.5 | 34 | 2 | M6 | MU002,X+ER | 4.75 | 2.25 | P002Z3 | MUP002C(E),X | 002CP15 | 002CPE | T25 | 135 | |
| 12 | MUP001,X | 19 | 71 | 16 | 56 | 7 | 6 | 38 | 17.5 | 4 | 33 | 2 | M6 | MU001,X+ER | 4.3 | 1.9 | P001Z3 | MUP001C(E),X | 001CP12 | 001CPE | 91 | T00 |
| 10 | MUP000.X | 18 | 67 | 16 | 53 | 7 | 6 | 35 | 17.5 | 4 | 33 | 2 | M6 | MU000,X+ER | 3.9 | 1.55 | P000z3 | MUP000C(E),X | 000CP10 | 00OCPE | 77 | 85 |
