UCP Cast iron · Set screw locking type

Pillow block

UCP Cast iron · Set screw locking type

Cast iron set-screw fixed UCP flanged bearings feature a robust cast iron housing, offering structural stability and high load-bearing capacity. The set-screw locking mechanism enables rapid alignment of the bearing inner ring with the shaft, ensuring simple installation and reliable fastening. With excellent overall sealing performance, they effectively resist the ingress of dust and contaminants. Suitable for a wide range of transmission equipment operating conditions, they offer good radial load-bearing capacity and operational stability. Widely used in conveying, agricultural machinery, textile and general machinery sectors, they are characterised by outstanding durability and practicality.

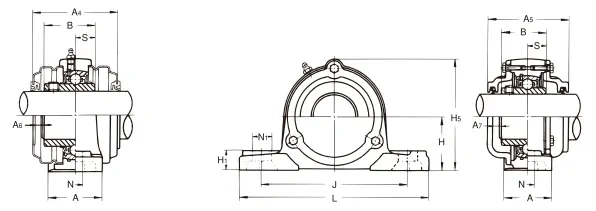

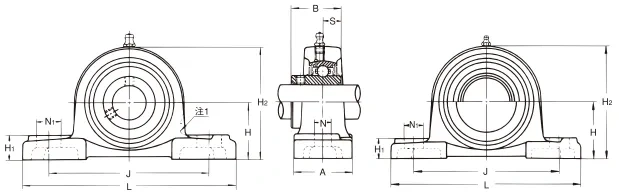

Shaft diameter (mm)	bearing model number	Unit model	Equipped with steel plate dust cover Unit model	Equipped with cast iron dust cover Unit model	Dynamic load Cr (kN)	Static load Cor (kN)	H (mm)	L (mm)	A (mm)	J (mm)	N (mm)	N₁ (mm)	H₁ (mm)	H₂ (mm)	H₅ (mm)	B (mm)	S (mm)	A₄ (mm)	A₅ (mm)	A₆ (mm)	A₇ (mm)	Installation bolt model	Standard weight (kg)	Equipped with steel plate dust cover weight(kg)	Equipped with cast iron dust cover weight(kg)
140	UC328	UCP328	-	CUCP328CE	255	246	200	720	170	600	50	80	80	388	420	160	60	-	260	-	25	M33	89.1	-	110
130	UC326	UCP326	-	CUCP326CE	229	217.8	180	670	160	540	45	80	80	354	388	145	54	-	240	-	24	M33	66.1	-	92.2
120	UC324	UCP324	-	CUCP324CE	207	194.8	160	620	150	480	40	65	70	321	356	128	51	-	230	-	26	M33	53.5	-	73.8
110	UC322	UCP322	-	CUCP322CE	205	178.8	150	570	140	430	40	60	60	295	328	117	46	-	210	-	25	M33	42.5	-	54.7
105	UC321	UCP321	-	CUCP321CE	183	150.8	140	520	130	400	36	55	55	278	305	112	44	-	194	-	21	M30	36.6	-	45.2
100	UC320	UCP320	-	CUCP320CE	173	140.4	140	490	120	380	36	50	55	275	282	108	42	-	190	-	21	M30	34.3	-	44.9
100	UCX20	UCPX20	-	-	134	104.7	127	432	121	337	33	64	52	250	278	117.5	49.2	-	190	-	21	M27	33	-	-
95	UC319	UCP319	-	CUCP319CE	153	118.4	125	470	120	360	36	50	50	250	257	103	41	-	180	-	20	M30	26.5	-	36.8
90	UC318	UCP318	-	CUCP318CE	143	118.4	118	450	110	340	33	50	50	235	243	104	40	-	180	-	20	M27	20.9	-	30.4
90	UCX18	UCPX18	-	-	109	107.2	101.6	381	110	283	27	45	45	206	206	104	42.9	-	180	-	20	M22	17	-	-
90	UC218	UCP218	-	CUCP218CE	95.5	71.4	101.6	327	88	262	27	33	34	200	211	96	39.7	-	164	-	17	M22	14.7	-	18.2
85	UC317	UCP317	-	CUCP317CE	132	114	112	420	110	320	33	45	45	221	234	96	40	-	164	-	18	M27	18.6	-	23.6
85	UCX17	UCPX17	-	-	95.5	96.5	101.6	381	102	283	27	59	42	202	196	96	39.7	-	164	-	18	M22	17.1	-	-
85	UC217	UCP217	UCP217CE	CUCP217CE	83.5	71.4	95.2	310	83	247	25	31	40	187	198	85.7	34.1	-	150	-	17	M20	17.2	14.2	14.2
80	UC316	UCP316	-	CUCP316CE	123	86.4	106	400	110	300	27	45	32	209	199	86	34	-	150	-	16	M22	16.4	-	20.55
80	UCX16	UCPX16	-	-	83.5	61.8	101.6	381	100	283	27	59	42	197	219	85.7	34.1	-	154	-	17	M22	17.4	-	-
80	UC216	UCP216	-	CUCP216CE	72.5	53	88.9	292	78	232	25	31	30	175	188	82.6	33.3	-	146	-	15	M20	10	-	12.2
75	UC315	UCP315	-	CUCP315CE	114	76.9	100	380	100	300	27	40	40	197	188	82	33	-	150	-	17	M22	13.6	-	19.6
75	UCX15	UCPX15	-	-	72.5	53	88.9	330	89	229	27	51	35	177	208	82.6	33.3	-	150	-	17	M22	11.4	-	-
75	UC215	UCP215	-	CUCP215CE	66	48.2	82.6	275	74	217	25	31	28	163	167	77.8	33.3	-	136	-	17	M20	7.9	-	9.6
