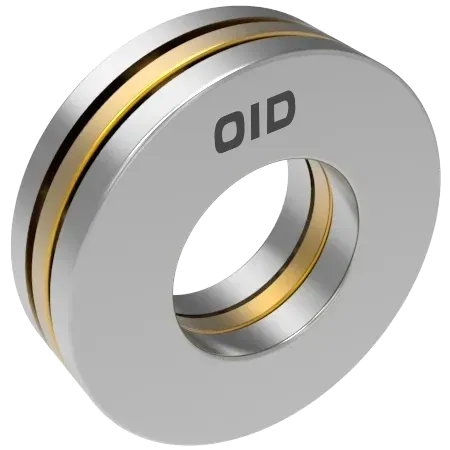

Tapered roller thrust bearing TT/TTF type bore 101.600-600mm

Back

Overall dimensions（mm)				Rated load(KN)		Rated load{kgf}		Bearing code	Size（mm)		Installation Department Inner angle curvature(mm)	Weight(kg)
d	D	T	γ(minimum)	C_a	C_0a	C_a	C_0a	Bearing code	d₁	d₁	γ_a（maximum）	(Reference)
600	710	86	3	1900	10700	194000	1090000	600TTF7101	604	710	2.5	66.2
560	670	85	3	1950	10700	199000	1090000	560TTF6701	565	668	2.5	61.4
558.8	1066.8	285.75	10.4	21100	94500	2150000	9600000	* 558TTF1051	561.98	1065.22	10.4	1260
558	780	120	9.5	4800	25500	485000	2600000	558TT7801	558	780	8	190
508	990.6	196.85	12.7	12000	65000	1220000	6650000	* 508TT9951	508	990.6	12.7	760
508	730.25	120.65	6	4900	26100	500000	2660000	500TTF6301	509	730.25	2.5	64.3
500	630	82	3	2020	11600	206000	1180000	500TTF6301	505	628	2.5	64.3
460	580	90	3	1890	9550	193000	970000	460TTF5803	465	579	2.5	60
450	570	100	3	2170	10500	221000	1070000	450TTF5701	455	569	2.5	65.4
440	600	105	4	2720	13900	277000	1420000	440TTF6001	440	600	3	93.3
431.8	863.6	228.6	10.4	15100	69500	1540000	7100000	* 431TTF8651	435	862	10.4	683
406.4	838.2	177.8	12.7	8950	46500	910000	4750000	* 406TT8351	406.8	837.8	12.7	510
406.4	711.2	146.05	9.7	5900	28600	605000	2920000	* 406TT7151	406.8	711.2	9.7	266
380	550	110	4	2760	12100	282000	1240000	380TTF5501	381	550	3	92.9
360	600	120	4	3700	20100	380000	2050000	360TTF6201	366	620	3	148
360	470	85	4	1440	6950	147000	710000	360TTF4701	360.4	470	3	41.4
350	460	85	2	1370	6600	140000	675000	350TTF4602A	351	450	2	40.4
340	460	96	3	1690	7750	172000	790000	340TTF4603	340	460	2.5	49.2
330	440	85	3	1300	6300	132000	640000	330TTF4401	331	440	2.5	38.5
279.4	603.25	136.525	11.2	5400	25200	550000	2570000	279TT6051	279.7	603.25	11.2	208
