Single-direction thrust ball bearing bore 10-360mm

Single-direction thrust ball bearing bore 10-360mm

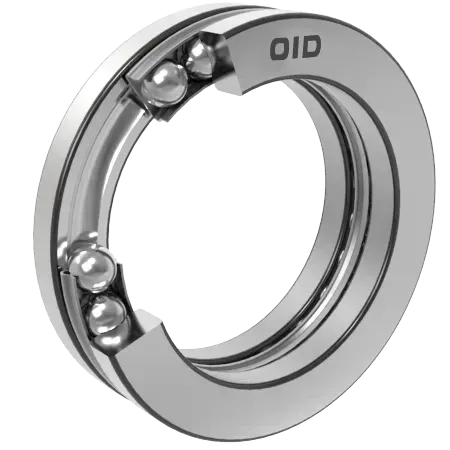

Single-direction thrust ball bearing

Single-direction thrust ball bearing bore 10-360mm

Back

Overall dimensions（mm)						Rated load(N)		Rated load{kgf}		Rated speed min^-1		Bearing code			Size（mm)							Installation dimensions(mm)			Weight(kg)(Reference)
d	D	T	T₃	T₄	γ (minimum)	C_a	C_0a	C_a	C_0a	Grease lubrication	Oil lubrication	Flat bottomed seat Circle type	Heart regulating ball Face seat	Ball Face Seat Circle type	d₁	d₁	D₂	d₃	B	A	R	D_a (minimum）	d_a (maximum）	γ_a (maximum)	Flat bottomed seat Circle type	Heart regulating ball Face type	Ball Face Seat Circle type
360	500	110	116.7	130	4	705000	3500000	72000	355000	380	560	51272X	53272X	53272XU	495	365	430	510	43	172	360	442	418	3	68.8	76.3	90.9
340	460	96	100.3	113	3	595000	2800000	60500	285000	430	630	51268X	53268X	53268XU	455	345	400	470	36	199	360	411	389	2.5	47.9	52.7	62
320	440	95	100.5	112	3	585000	2680000	59500	273000	450	670	51264X	53264X	53264XU	435	325	380	450	36	157	320	391	369	2.5	45	49.9	59.4
300	420	95	100.5	112	3	540000	2410000	55000	246000	450	670	51260X	53260X	53260XU	415	304	360	430	34	164	320	371	349	2.5	43.5	47.7	56.1
280	380	80	85	94	2.1	450000	1950000	46000	199000	530	800	51256X	53256X	53256XU	375	284	325	390	31	143	280	339	321	2	27.1	30.3	37
260	360	79	82.8	93	2.1	435000	1800000	44500	184000	560	850	51252X	53252X	53252XU	355	264	305	370	30	152	280	319	301	2	25.1	27.3	33.2
240	340	78	81.6	92	2.1	420000	1650000	43000	168000	560	850	51248X	53248X	53248XU	335	244	290	350	30	122	250	299	281	2	23.7	25.6	30.7
220	300	63	65.6	75	2	325000	1210000	33500	123000	670	1000	51244X	53244X	53244XU	297	224	260	310	25	118	225	268	252	2	13.6	14.9	18
200	340	110	118.4	130	4	600000	2220000	61500	227000	480	710	51340X	53340X	53340XU	335	205	270	350	38	92	250	282	258	3	43.6	46.2	54.8
200	280	62	65.3	74	2	315000	1110000	32500	113000	710	1100	51240X	53240X	53240XU	277	204	240	290	23	125	225	248	232	2	12.3	13.4	16.1
190	320	105	111	121	4	550000	1960000	56000	199000	500	750	51338X	53338X	53338XU	315	195	255	330	33	104	250	266	244	3	36.5	38.1	44.7
190	270	62	65.7	73	2	320000	1110000	32500	113000	750	1100	51238X	53238X	53238XU	267	194	230	280	23	98	200	238	222	2	11.8	12.9	15.7
180	360	140	148.3	164	5	750000	2730000	76500	278000	400	600	51436X	53436X	53436XU	355	184	270	370	46.5	97	280	285	255	4	70.5	72.1	84.9
180	300	95	99.3	109	3	480000	1680000	49000	171000	560	850	51336X	53336X	53336XU	295	184	240	310	32	91	225	251	229	2.5	25.9	29.2	34.9
180	250	56	58.2	66	1.5	284000	955000	28900	97000	800	1200	51236X	53236X	53236XU	247	183	210	260	21.5	112	200	222	208	1.5	7.94	8.57	10.8
170	340	135	141	156	5	715000	2480000	73000	253000	430	630	51434X	53434X	53434XU	335	174	255	350	46	74	250	269	241	4	61.2	61.3	73
170	280	87	91.3	100	3	465000	1570000	47500	160000	600	900	51334X	53334X	53334XU	275	174	220	290	29	105	225	235	215	2.5	20.3	23.2	28
170	240	55	58.7	65	1.5	280000	915000	28500	93000	850	1300	51234X	53234X	53234XU	237	173	200	250	21.5	91	180	212	198	1.5	7.41	8.21	10.5
160	320	130	135.3	150	5	650000	2210000	66000	226000	450	670	51432X	53432X	53432XU	315	164	240	330	41.5	84	250	254	226	4	52.7	52.9	62
160	270	87	91.7	100	3	475000	1570000	48500	160000	600	900	51332X	53332X	53332XU	265	164	215	280	29	77	200	225	205	2.5	19.6	22.3	26.7
