The UGFL series of eccentric, elongated flanged bearings feature a cast iron extended flange housing, offering ample rigidity, secure mounting and excellent vibration resistance. The eccentric sleeve locking mechanism ensures easy installation and removal, provides reliable anti-loosening protection, and features self-aligning capabilities to compensate for installation misalignment. With a comprehensive sealing design that protects against dust and contamination and allows for grease lubrication, these bearings are suitable for medium to heavy-duty, low-speed, unidirectional applications in conveying systems, agricultural machinery, mining equipment and various general-purpose heavy-duty transmission equipment, offering stable operation and high durability.

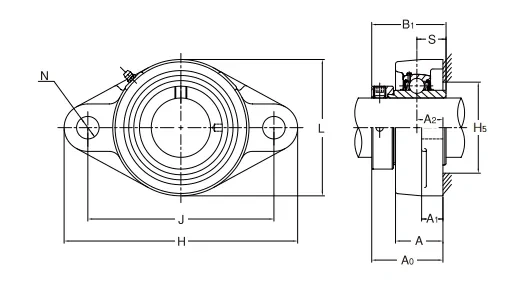

| Eccentric long type UGFL Model specification table | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shaft diameter (mm) |
Unit model | H (mm) |
L (mm) |
A (mm) |
J (mm) |
N (mm) |
A₁ (mm) |
A₂ (mm) |
A₀ (mm) |
H₅ (mm) |
B₁ (mm) |
S (mm) |
Installation bolt model | bearing model number | Radial Basic Rating Dynamic load Cr (kN) |
Radial Basic Rating static load Cor (kN) |
Bearing seat model | Unit weight (kg) |
| 65 | UGFL213 | 258 | 155 | 50 | 210 | 23 | 24 | 30 | 81.6 | 84 | 85.7 | 34.1 | M20 | UG213+ER | 57.5 | 40 | FL213 | 5.71 |
| 60 | UGFL212 | 250 | 140 | 48 | 202 | 23 | 20 | 29 | 75.8 | 79 | 77.8 | 31 | M20 | UG212+ER | 52.5 | 36.1 | FL212 | 4.4 |
| 55 | UGFL211 | 224 | 130 | 43 | 184 | 19 | 20 | 25 | 68.6 | 72 | 71.4 | 27.8 | M16 | UG211+ER | 43 | 29.4 | FL211 | 3.4 |
| 50 | UGFL210 | 197 | 115 | 40 | 157 | 19 | 18 | 22 | 60.1 | 65 | 62.7 | 24.6 | M16 | UG210+ER | 35.5 | 23.2 | FL210 | 2.3 |
| 45 | UGFL209 | 188 | 108 | 38 | 148 | 19 | 18 | 22 | 56.9 | - | 56.3 | 21.4 | M16 | UG209+ER | 33 | 20.5 | FL209 | 2 |
| 40 | UGFL208 | 175 | 100 | 36 | 144 | 16 | 16 | 21 | 55.9 | 55 | 56.3 | 21.4 | M14 | UG208+ER | 29.3 | 17.9 | FL208 | 1.7 |
| 35 | UGFL207 | 161 | 90 | 34 | 130 | 16 | 16 | 19 | 51.3 | - | 51.1 | 18.8 | M14 | UG207+ER | 25.9 | 15.4 | FL207 | 1.3 |
| 30 | UGFL206 | 148 | 80 | 31 | 117 | 16 | 14 | 18 | 48.1 | 42 | 48.4 | 18.3 | M14 | UG206+ER | 19.6 | 11.3 | FL206 | 0.96 |
| 25 | UGFL205 | 130 | 68 | 27 | 99 | 16 | 14 | 16 | 42.9 | 36 | 44.4 | 17.5 | M14 | UG205+ER | 14 | 7.9 | FL205 | 0.63 |
| 20 | UGFL204 | 113 | 60 | 25.5 | 90 | 12 | 12 | 15 | 41.6 | 31 | 43.7 | 17.1 | M10 | UG204+ER | 12.8 | 6.6 | FL204 | 0.47 |
