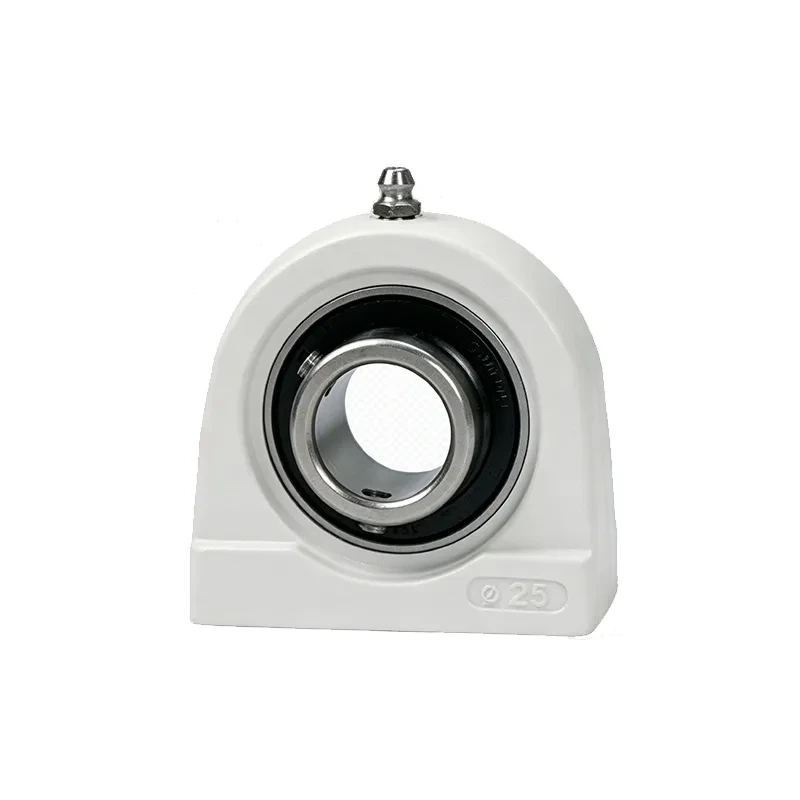

The Eco-friendly Series of vertical flanged bearings is manufactured using environmentally friendly and safe materials, with no harmful substance residues in the production process, meeting the stringent hygiene and environmental requirements of applications in the food, pharmaceutical and light industrial sectors. The vertical housing structure is robust, ensuring secure and reliable installation, and is suitable for a wide range of vertical mounting scenarios. The eccentric ring locking mechanism is simple to operate, providing uniform and secure locking that effectively prevents loosening during operation, whilst allowing for quick and easy disassembly and maintenance. The bearings possess excellent self-aligning capabilities, compensating for installation misalignment and shaft alignment errors. They offer smooth operation, low noise levels and high wear resistance, making them widely used in transmission components of environmental protection equipment, automated production lines and food processing machinery, where high standards of environmental protection and operational stability are required.
| shaft diameter (mm) |

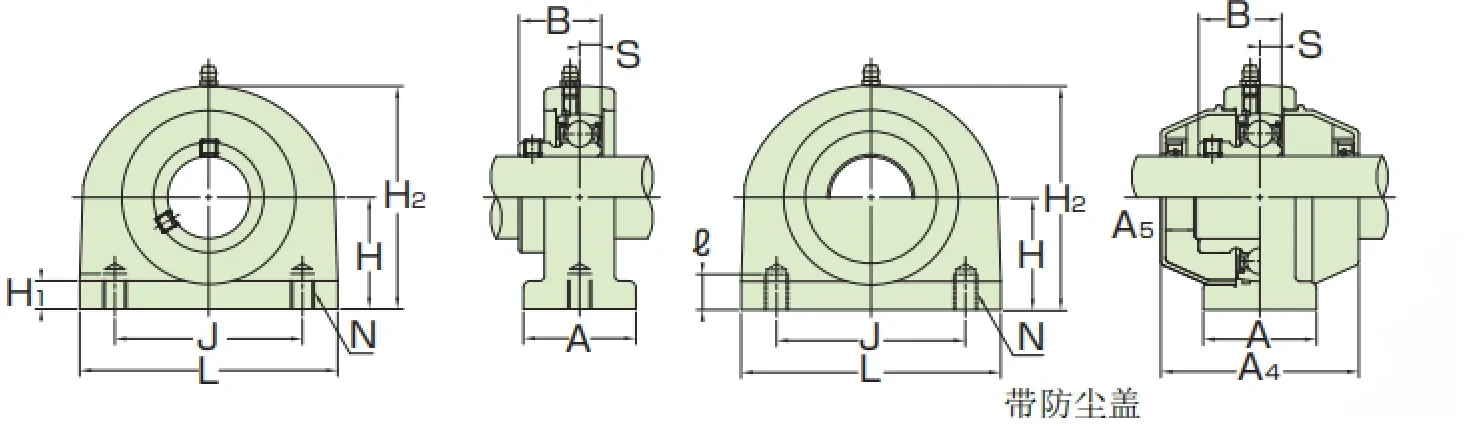

Bearing unit type number | Main dimensions（mm） | Basic Rated Load(kN) | Bearing Seat Type Number | Type Bearing unit type number with protective cover | Weight（kg） | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | L | A | J | N | e | H1 | H2 | B | S | A4 | A5 | Type number | Cr | Cor | Rubber sealed covers on both sides | Single side shaft end shield | lidless | with lid | |||
| 40 | MBTBL208V | 49.2 | 120 | 48 | 88.9 | M12×1.75 | 16 | 22.5 | 100.5 | 35.5 | 9 | 103 | 24 | MB8V | 24.9 | 14.3 | TBL208 | MBTBL208VC | MBTBL208VE | 0.82 | 0.88 |
| 35 | MBTBL207V | 47.6 | 110 | 47.5 | 82.6 | M10×1.5 | 15.5 | 18.5 | 95 | 32.9 | 8.5 | 90 | 20 | MB7V | 22 | 12.3 | TBL207 | MBTBL207VC | MBTBL207VE | 0.7 | 0.75 |
| 30 | MBTBL206V | 42.9 | 101 | 42.5 | 76.2 | M10×1.5 | 12 | 16 | 84 | 30.3 | 8 | 82 | 18 | MB6V | 16.7 | 9 | TBL206 | MBTBL206VC | MBTBL206VE | 0.49 | 0.53 |
| 25 | MBTBL205V | 36.5 | 76.2 | 39.5 | 50.8 | M10×1.5 | 12 | 14 | 73.5 | 27 | 7.5 | 70 | 15 | MB5V | 11.9 | 6.3 | TBL205 | MBTBL205VC | MBTBL205VE | 0.37 | 0.4 |
| 20 | MBTBL204V | 33.3 | 72.8 | 34.5 | 50.8 | M8×1.25 | 12 | 13 | 66 | 24.7 | 7 | 64 | 14 | MB4V | 10.9 | 5.3 | TBL204 | MBTBL204VC | MBTBL204VE | 0.32 | 0.35 |
