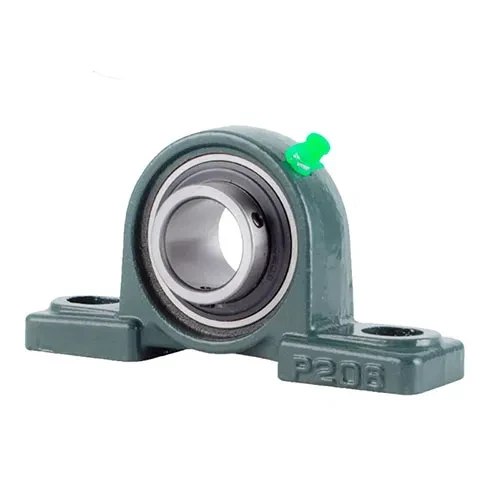

Vertical pillow block

Back

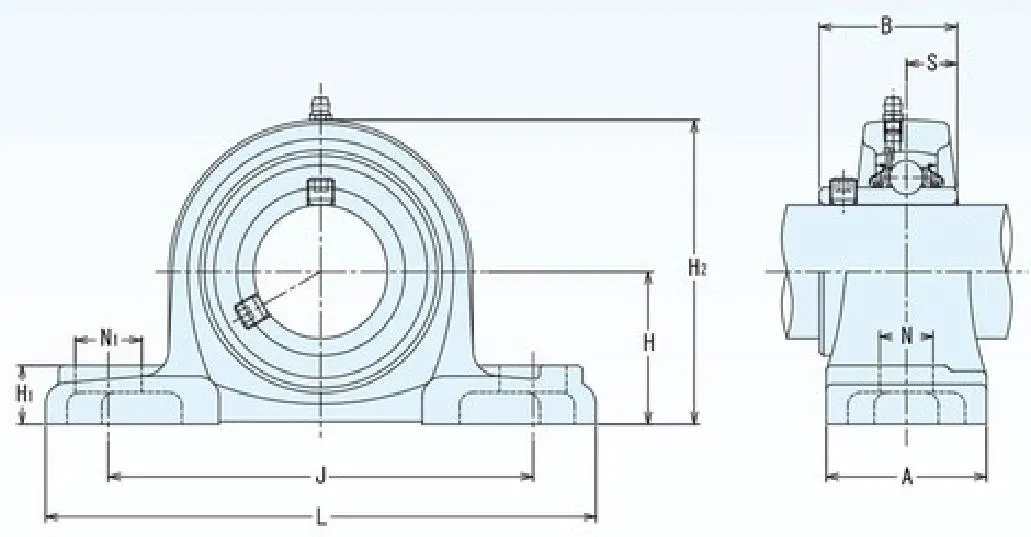

shaft diameter(mm)	Bearing unit type number	Main dimensions(mm)										Installation bolt nominal specification	Type number	Bearing		Bearing seat nominal type number	Weight of bearing with seat (kg)
		Main dimensions(mm)												Basic Rated Load(kN)
		H	L	A	J	N	N₁	H₁	H₂	B	S			Cr	Cor
65	UCP213RT	76.2	265	70	203	25	29	27	150	65.1	25.4	M20	UC213RT	57.5	40	P213	5.6
60	UCP212RT	69.8	241	70	184	20	25	25	138	65.1	25.4	M16	UC212RT	52.5	36.1	P212	4.7
55	UCP211RT	63.5	219	60	171	20	25	22	126	55.6	22.2	M16	UC211RT	43	29.4	P211	3.3
50	UCP210RT	57.2	206	60	159	20	25	22	114	51.6	19	M16	UC210RT	35.5	23.2	P210	2.59
45	UCP209RT	54	190	54	146	17	22	20	108	49.2	19	M14	UC209RT	33	20.5	P209	2.19
40	UCP208RT	49.2	184	54	137	17	25	19	100	49.2	19	M14	UC208RT	29.3	17.9	P208	1.92
35	UCP207RT	47.6	167	48	127	17	21	19	94	42.9	17.5	M14	UC207RT	25.9	15.4	P207	1.59
30	UCP206RT	42.9	165	48	121	17	21	18	83	38.1	15.9	M14	UC206RT	19.6	11.3	P206	1.26
25	UCP205RT	36.5	140	38	105	13	16	16	70	34.1	14.3	M10	UC205RT	14	7.9	P205	0.79
20	UCP204RD	33.3	127	38	95	13	19	15	65	31	12.7	M10	UC204RD	12.8	6.6	P204	0.65
17	UCP203RD	30.2	127	38	95	13	19	15	62	31	12.7	M10	UC203RD	12.8	6.6	P203	0.62
15	UCP202RD	30.2	127	38	95	13	19	15	62	31	12.7	M10	UC202RD	12.8	6.6	P203	0.63
12	UCP201RD	30.2	127	38	95	13	19	15	62	31	12.7	M10	UC201RD	12.8	6.6	P203	0.65
