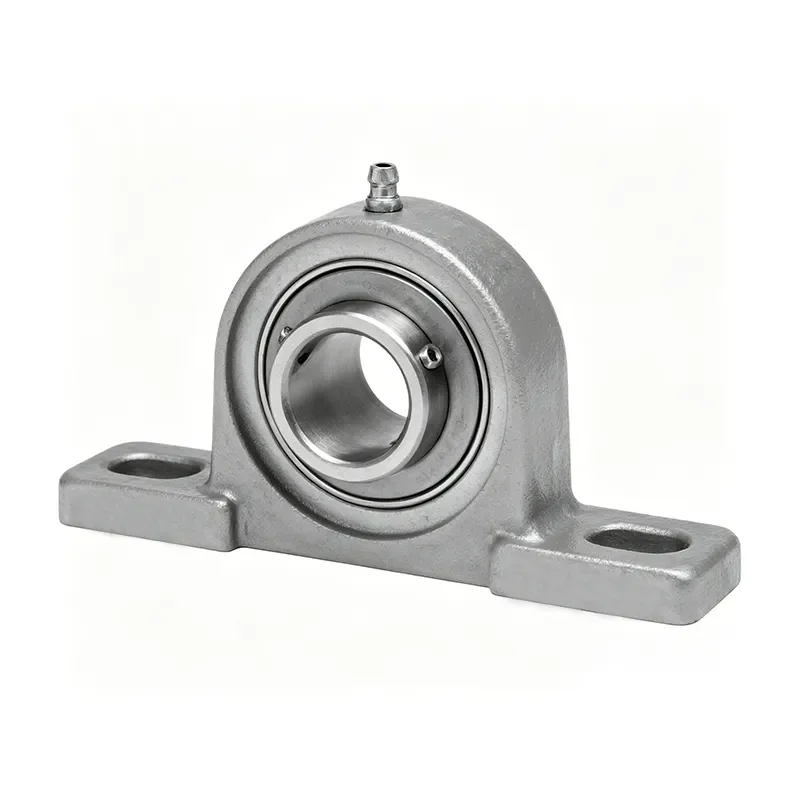

The HMUCP vertical housing stainless steel spherical roller bearing unit combines a vertical square housing with a stainless steel spherical roller bearing, making it suitable for vertical installation applications. The housing and bearing fit securely together, whilst the stainless steel construction offers excellent rust and corrosion resistance, meeting the demands of harsh operating conditions such as damp environments and food contact. Featuring built-in self-aligning capabilities, it effectively compensates for installation misalignment, ensuring easy installation and low maintenance costs. Widely used in food processing machinery, automated conveyors, and light industrial and textile equipment, it provides stable and reliable vertical support for a wide range of shaft systems.
| shaft diameter (mm) |
Bearing unit type number | Main dimensions（mm） | Installation bolt specification | Basic Rated Load(kN) | Bearing Seat Type Number | Type Bearing unit type number with protective cover Rubber sealed covers on both sides （Single side shaft end shield） |
Weight（kg） | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | L | A | J | N | N1 | H1 | H2 | B | S | A4 | A6 | Type number | Cr | Cor | lidless | with lid | |||||
| 65 | HMUCP213,Y | 76.2 | 265 | 52 | 203 | 25 | 29 | 20 | 65.1 | 150 | 25.4 | _ | _ | M20 | HMUC213 | 48.9 | 32 | MP213,Y | _ | 5.02 | _ |
| 60 | HMUCP212,Y | 69.8 | 241 | 50 | 184 | 20 | 25 | 19 | 65.1 | 138 | 25.4 | _ | _ | M16 | HMUC212 | 44.6 | 28.9 | MP212,Y | _ | 4.23 | _ |
| 55 | HMUCP211,Y | 63.5 | 219 | 45 | 171 | 20 | 25 | 16 | 55.6 | 126 | 22.2 | _ | _ | M16 | HMUC211 | 36.6 | 23.5 | MP211,Y | _ | 3.05 | _ |
| 50 | HMUCP210N,Y | 57.2 | 206 | 45 | 159 | 20 | 25 | 11 | 51.6 | 114 | 19 | 87 | 9 | M16 | HMUC210 | 30.2 | 18.6 | MP210C,Y | HMUCP210C(E),Y | 2.34 | 2.54 |
| 45 | HMUCP209N,Y | 54 | 190 | 40 | 146 | 17 | 22 | 11 | 49.2 | 108 | 19 | 82 | 10 | M14 | HMUC209 | 28.1 | 16.4 | MP209C,Y | HMUCP209C(E),Y | 2.04 | 2.24 |
| 40 | HMUCP208N,Z | 49.2 | 184 | 40 | 137 | 17 | 22 | 11 | 49.2 | 100 | 19 | 81 | 9 | M14 | HMUC208 | 24.9 | 14.3 | MP208C,Z | HMUCP208C(E),Z | 1.85 | 2.05 |
| 35 | HMUCP207N,Z | 47.6 | 167 | 38 | 127 | 17 | 21 | 11 | 42.9 | 94 | 17.5 | 70 | 8 | M14 | HMUC207 | 22 | 12.3 | MP207C,Z | HMUCP207C(E),Z | 1.5 | 1.7 |
| 30 | HMUCP206N,Z | 42.9 | 165 | 36 | 121 | 17 | 21 | 11 | 38.1 | 83 | 15.9 | 65 | 9 | M14 | HMUC206 | 16.7 | 9 | MP206C,Z | HMUCP206C(E),Z | 1.12 | 1.2 |
| 25 | HMUCP205N,Y | 36.5 | 140 | 30 | 105 | 13 | 19 | 11 | 34.1 | 70 | 14.3 | 63 | 10 | M10 | HMUC205 | 11.9 | 6.3 | MP205C,Y | HMUCP205C(E),Y | 0.68 | 0.76 |
| 20 | HMUCP204N,Y | 33.3 | 127 | 30 | 95 | 13 | 19 | 11 | 31 | 65 | 12.7 | 55 | 8 | M10 | HMUC204 | 10.9 | 5.3 | MP204C,Y | HMUCP204C(E),Y | 0.62 | 0.68 |
| 17 | HMUCP203N,Y | 30.2 | 127 | 30 | 95 | 13 | 19 | 11 | 31 | 61 | 12.7 | 55 | 8 | M10 | HMUC203 | 10.9 | 5.3 | MP203C,Y | HMUCP203C(E),Y | 0.59 | 0.65 |
| 15 | HMUCP202N,Y | 30.2 | 127 | 30 | 95 | 13 | 19 | 11 | 31 | 61 | 12.7 | 55 | 8 | M10 | HMUC202 | 10.9 | 5.3 | MP203C,Y | HMUCP202C(E),Y | 0.6 | 0.66 |
| 12 | HMUCP201N,Y | 30.2 | 127 | 30 | 95 | 13 | 19 | 11 | 31 | 61 | 12.7 | 55 | 8 | M10 | HMUC201 | 10.9 | 5.3 | MP203C,Y | HMUCP201C(E)Y | 0.62 | 0.68 |
