| shaft diameter (mm) |
Bearing unit type number | Main dimensions（mm） | Installation bolt specification | Basic Rated Load(kN) | Bearing Seat Type Number | Bearing unit type number with protective cover | Type number with stainless steel cover | Weight（kg） | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

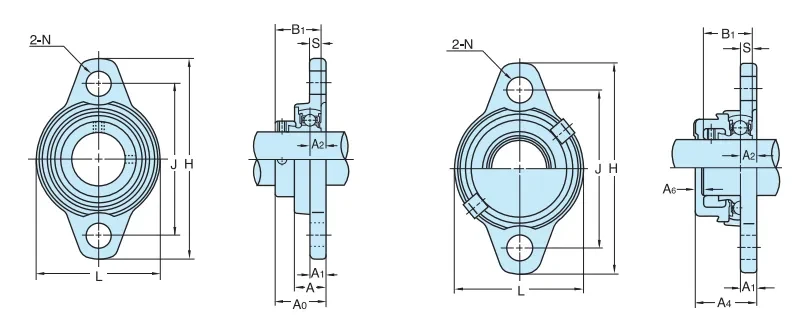

| H | L | A | J | N | A1 | A2 | A0 | B1 | S | A4 | A6 | Type number | Cr | Cor | Equipped with rubber sealing cover （Single side shaft end shield） |
Equipped with rubber sealing cover | Shaft end shield | lidless | with lid | ||||
| 30 | MUEL006.X | 112 | 70 | 18 | 85 | 13 | 9 | 9 | 29 | 26.5 | 6.5 | 34 | 4 | M10 | MU006,X+ER | 11.3 | 6.6 | FL06-7Z3 | MUFL006C(E).Y | 06-7CP30,Y | 06-7CPE,Y | 354 | 370 |
| 25 | MUEL005.X | 95 | 60 | 16 | 75 | 10 | 8 | 8 | 27.5 | 25.5 | 6 | 32 | 3 | M8 | MU005,X+ER | 8.6 | 4.65 | FL05-6Z3 | MUFL005C(E).X | 05-6CP25 | 05-6CPE | 244 | 255 |
| 20 | MUEL004.X | 90 | 55 | 16 | 71 | 10 | B | 8 | 26.5 | 24.5 | 6 | 31 | 3 | M8 | MU004.X+ER | 7.9 | 4 | FL04-5Z3 | MUFL004C(E).X | 04-5CP20 | 04-5CPE | 205 | 215 |
| 17 | MUEL003.X | 71 | 46 | 14 | 56 | 7 | 7 | 7 | 22.5 | 20.5 | 5 | 26 | 2 | M6 | MU003.X+ER | 5.1 | 2.65 | FL03Z3 | MUFL003C(E).X | 003CP17 | 003CPE | 129 | 135 |
| 15 | MUEL002.X | 67 | 42 | 13 | 53 | 7 | 6.5 | 6.5 | 20.5 | 18.5 | 4.5 | 24 | 2 | M6 | MU002,X+ER | 4.75 | 2.25 | FL002Z3 | MUFL002C(E).X | 002CP15 | 002CPE | 100 | 105 |
| 12 | MUEL001.X | 63 | 38 | 11.5 | 48 | 7 | 5.5 | 5.5 | 19 | 17.5 | 4 | 22 | 2 | M6 | MU001,X+ER | 4.3 | 1.9 | FL001Z3 | MUFL001C(E).X | 001CP12 | 001CPE | 76 | 80 |
| 10 | MUEL000.X | 60 | 36 | 11.5 | 45 | 7 | 5.5 | 5.5 | 19 | 17.5 | 4 | 22 | 2 | M6 | MU000.X+ER | 3.9 | 1.55 | FL000Z3 | MUFL000C(E).X | 000CP10 | 000CPE | 60 | 65 |
