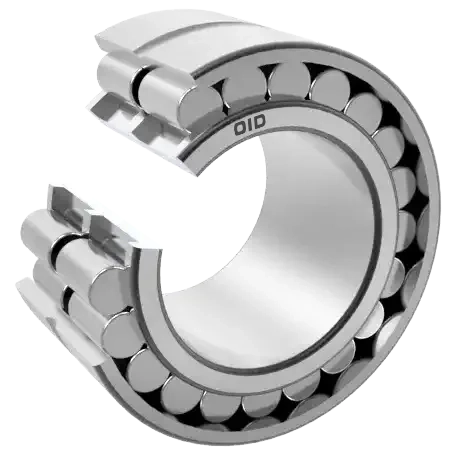

Full complement cylindrical roller bearing NNCF bore 100-500mm

Back

Overall dimensions（mm)					Rated load(KN)		Bearing code	Installation dimensions(mm)			Weight(kg)
d	D	B	γ (minimum)	E_W	C_r	C_or	Bearing code	d_a	d_a	γ_a (maximum)	(Reference)
400	600	272	5	558.7	5050	10900	NNCF5080V	429	568	4	256
400	540	140	4	503	2240	5900	NNCF4980V	425	513	3	94.5
400	500	100	2.1	471.7	1290	3750	NNCF4880V	420	479	2	47.5
380	560	243	5	521.4	4500	9600	NNCF5076V	408	529	4	194
380	520	140	4	482.5	2180	5650	NNCF4976V	404	493	3	90.5
380	480	100	2.1	450.6	1260	3600	NNCF4876V	399	459	2	45.5
360	540	243	5	503.6	4350	9150	NNCF5072V	388	509	4	186
360	480	118	3	449	1730	4500	NNCF4972V	381	457	2.5	61
360	440	80	2.1	420.4	885	2580	NNCF4872V	379	421	2	27
340	520	243	5	485.8	4250	8750	NNCF5068V	368	490	4	177
340	460	118	3	431	1690	4300	NNCF4968V	361	438	2.5	58
340	420	80	2.1	397.4	855	2430	NNCF4868V	359	400	2	25.6
320	480	218	4	446.9	3500	7350	NNCF5064V	343	454	3	131
260	320	60	2	303.6	515	1450	NNCF4852V	275	304	2	11
240	360	160	3	335.25	1990	4000	NNCF5048V	259	340	2.5	54.3
240	320	80	2.1	300	725	1770	NNCF4948V	257	302	2	18.4
240	300	60	2	282.6	495	1340	NNCF4848V	254	285	2	10.3
220	340	160	3	312.3	1890	3650	NNCF5044V	238	320	2.5	50.7
220	300	80	2.1	277	695	1620	NNCF4944V	236	283	2	17
220	270	50	1.5	256.9	340	905	NNCF4844V	233	257	1.5	6.4
