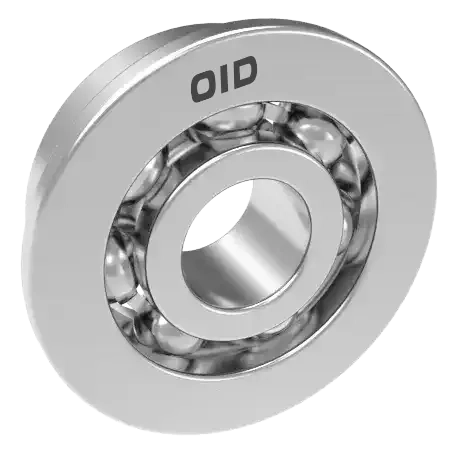

Metric series bore with snap ring shoulder 1-4mm

Metric series bore with snap ring shoulder 1-4mm

Metric series

Metric series bore with snap ring shoulder 1-4mm

Back

Overall dimensions（mm)										Rated load(N)		Rated load{kgf}		Rated speed min^-1		Bearing code				Installation dimensions(mm)				Weight(g)(Reference)
d	D	d₁	D₂	B	B₁	C₁	C₂	γ(minimum)	γ₁(minimum)	C_r	C_or	C_r	C_or	Grease lubrication	Oil lubrication	Open	Dust cover type	Sealing ring type	Sealing ring type	d_a（minimum）	d_b(maximum）	γ_a（maximum）	γ_b(maximum）	Open	Dust cover type
4	16	18	18	5	5	1	1	0.3	0.3	1730	670	177	68	36000	43000	F634	F634ZZ1	—	—	6	7.5	0.3	0.3	5.73	5.62
4	13	15	15	5	5	1	1	0.2	0.2	1300	485	133	49	40000	48000	F624	F624ZZ	—	—	5.6	6	0.2	0.2	3.38	3.53
4	12	13.5	13.5	4	4	1	1	0.2	0.2	960	345	98	35	48000	56000	F604	F604ZZ	—	—	5.6	5.6	0.2	0.2	2.53	2.53
4	11	12.5	12.5	4	4	1	1	0.15	0.15	960	345	98	35	48000	56000	F694	F694ZZ	—	—	5.2	5.6	0.15	0.15	1.91	1.96
4	10	11.2	11.6	3	4	0.6	0.8	0.2	0.15	710	270	73	28	50000	60000	MF104B	MF104BZZ	—	—	5.6	5.9	0.2	0.15	1.13	1.59
4	9	10.3	10.3	2.5	4	0.6	1	-0.15	-0.15	640	225	65	23	53000	63000	F684	F684ZZ	—	—	4.8	5.2	0.1	0.1	0.7	1.14
4	8	9.2	9.2	2	3	0.6	0.6	0.15	0.1	395	139	40	14	56000	67000	MF84	MF84ZZ	—	—	5.2	5	0.15	0.1	0.44	0.63
4	7	-	8.2	—	2.5	-	0.6	-	0.1	255	107	26	11	60000	71000	MF74ZZ	MF74ZZ	—	—	—	4.8	—	0.1	—	0.35
4	7	8.2	-	2	—	0.6	-	0.1	-	310	115	32	12	60000	67000	MF74	—	—	—	4.8	—	0.1	—	0.29	—
3	13	15	15	5	5	1	1	0.2	0.2	1300	485	133	49	36000	43000	F633	F633ZZ	—	—	4.6	6	0.2	0.2	3.73	3.59
3	10	11.5	11.5	4	4	1	1	0.15	0.15	630	218	64	22	50000	60000	F623	F623ZZ	—	—	4.2	4.3	0.15	0.15	1.85	1.86
3	9	10.5	10.5	3	5	0.7	1	0.15	0.15	570	187	58	19	56000	67000	F603	F603ZZ	—	—	4.2	4.3	0.15	0.15	1	1.63
3	9	10.2	10.6	2.5	4	0.6	0.8	0.2	0.15	570	187	58	19	56000	67000	MF93	MF93ZZ	—	—	4.6	4.3	0.2	0.15	0.81	1.34
3	8	9.5	9.5	3	4	0.7	0.9	0.15	0.15	560	179	57	18	60000	67000	F693	F693ZZ	—	—	4.2	4.3	0.15	0.15	0.7	0.97
3	8	9.2	-	2.5	—	0.6	-	0.15	-	560	179	57	18	60000	67000	MF83	—	—	—	4.2	—	0.15	—	0.56	—
3	7	8.1	8.1	2	3	0.5	0.8	0.1	0.1	390	130	40	13	63000	75000	F683A	F683AZZ	—	—	3.8	4	0.1	0.1	0.37	0.53
3	6	7.2	7.2	2	2.5	0.6	0.6	0.1	0.1	208	74	21	7.5	71000	80000	MF63	MF63ZZ	—	—	3.8	3.7	0.1	0.1	0.27	0.33
2.5	8	9.5	9.5	2.8	4	0.7	0.9	0.15	0.15	550	175	56	18	60000	71000	F602X	F602XZZ	—	—	3.7	3.5	0.15	0.15	0.74	0.98
2.5	8	9.2	-	2.5	—	0.6	-	0.2	-	560	179	57	18	60000	67000	MF82X	—	—	—	4.1	—	0.2	—	0.62	—
2.5	7	8.5	8.5	2.5	3.5	0.7	0.9	0.15	0.15	385	127	39	13	63000	75000	F692X	F692XZZ	—	—	3.7	3.8	0.15	0.15	0.51	0.68

Total 33 items
