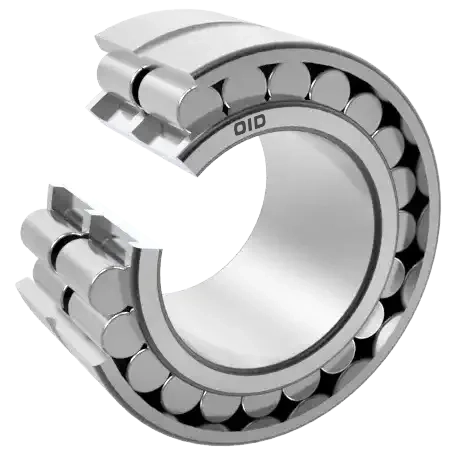

Full complement cylindrical roller bearing NCF bore 100-800mm

Back

Overall dimensions（mm)					Rated load(KN)		Bearing code	Installation dimensions(mm)			Weight(kg)
d	D	B	γ (minimum)	E_W	C_r	C_or	Bearing code	d_a	d_a	γ_a (maximum)	(Reference)
500	670	170	5	629	3400	9350	NNCF49/500V	531	637	4	173
500	620	118	3	590.7	1810	5600	NNCF48/500V	524	594	2.5	83.5
480	650	170	5	603	3350	8900	NNCF4996V	510	617	4	167
480	600	118	3	565.8	1760	5300	NNCF4896V	503	575	2.5	80.5
460	620	160	4	573	3050	8050	NNCF4992V	486	591	3	142
460	580	118	3	549.2	1730	5150	NNCF4892V	483	555	2.5	77.5
440	600	160	4	560.5	3000	7850	NNCF4988V	466	572	3	136
440	540	100	2.1	513	1350	4150	NNCF4888V	461	518	2	51.5
420	620	272	5	577.7	5150	11300	NNCF5084V	449	588	4	267
420	560	140	4	523	2290	6200	NNCF4984V	445	533	3	98.5
420	520	100	2.1	492	1320	3950	NNCF4884V	440	498	2	49.5
800	980	82	5	936	2110	5100	NCF18/800V	837	940	4	123.1
750	920	78	5	882.3	1930	4600	NCF18/750V	786	883	4	103.3
710	870	74	4	832.5	1650	3900	NCF18/710V	741	836	3	87.6
670	820	69	4	780	1520	3550	NCF18/670V	700	787	3	72.7
630	780	69	4	742	1470	3400	NCF18/630V	659	748	3	68.8
600	800	118	5	752	3050	7300	NCF29/600V	633	764	4	164.9
600	730	60	3	695.5	1140	2680	NCF18/600V	626	702	2.5	48.9
560	820	195	6	770	5600	11300	NCF30/560V	598	778	5	332.5
560	680	56	3	654.7	1020	2360	NCF18/560V	585	655	2.5	39.3
