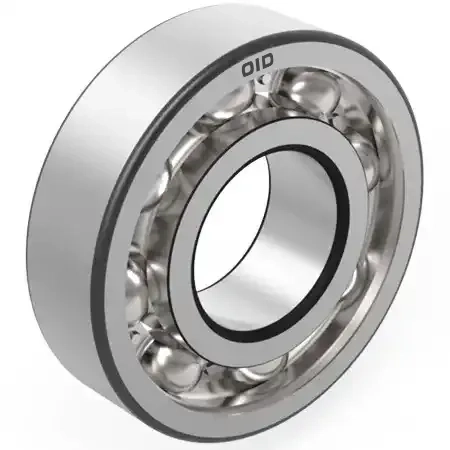

Single row deep groove ball bearings 260-800mm

Back

Overall dimensions (mm)				Rated load (KN)		Rated load {kgf}		Coefficient	Rated speed min^-1		Bearing code	Installation dimensions (mm)			Weight (kg)
d	D	B	γ_(minimum)	C_r	C_or	C_r	C_or	f₀	Grease lubrication	Oil lubrication	Open	D_a (minimum）	Da (maximum)	γ_a (maximum)	(Reference)
800	060	115	6	825	2050	84500	209000	380	450	16.8	69/800	826	1034	5	275
800	980	82	5	530	1310	54000	133000	400	480	17.5	68/800	820	960	4	132
750	000	112	6	785	1840	80000	188000	400	500	16.7	69/750	776	974	5	245
750	920	78	5	525	1260	53500	128000	430	530	17.4	68/750	770	900	4	110
710	950	106	6	715	1640	72500	167000	450	530	16.8	69/710	736	924	5	208
710	870	74	4	480	1100	49000	113000	480	560	17.4	68/710	726	854	3	92.6
670	980	136	7.5	765	1730	78000	177000	450	530	16.6	60/670	702	948	6	351
670	900	103	6	675	1460	68500	149000	480	560	16.7	69/670	696	874	5	181
670	820	69	4	435	965	44500	98000	500	630	17.4	68/670	686	804	3	75.4
630	920	128	7.5	750	1620	76500	165000	480	600	16.4	60/630	662	888	6	285
630	850	100	6	625	1350	64000	138000	530	630	16.7	69/630	656	824	5	163
630	780	69	4	420	890	43000	90500	560	670	17.3	68/630	646	764	3	71.3
600	870	118	6	790	1640	80500	168000	530	630	16.1	60/600	626	844	5	236
600	800	90	5	550	1160	56500	118000	560	670	16.9	69/600	620	780	4	120
600	730	60	3	355	735	36000	75000	600	710	17.5	68/600	613	717	2.5	50.9
560	820	115	6	735	1500	75000	153000	560	670	16.2	60/560	586	793.5	5	203
560	750	85	5	525	1040	53500	106000	600	750	16.7	69/560	580	730	4	105
560	680	56	3	330	650	33500	66500	670	800	17.4	68/560	573	667	2.5	41.5
530	780	112	6	680	1300	69500	133000	600	750	16.0	60/530	556	754	5	184
530	710	82	5	455	870	46500	88500	670	800	16.8	69/530	550	690	4	89.8
