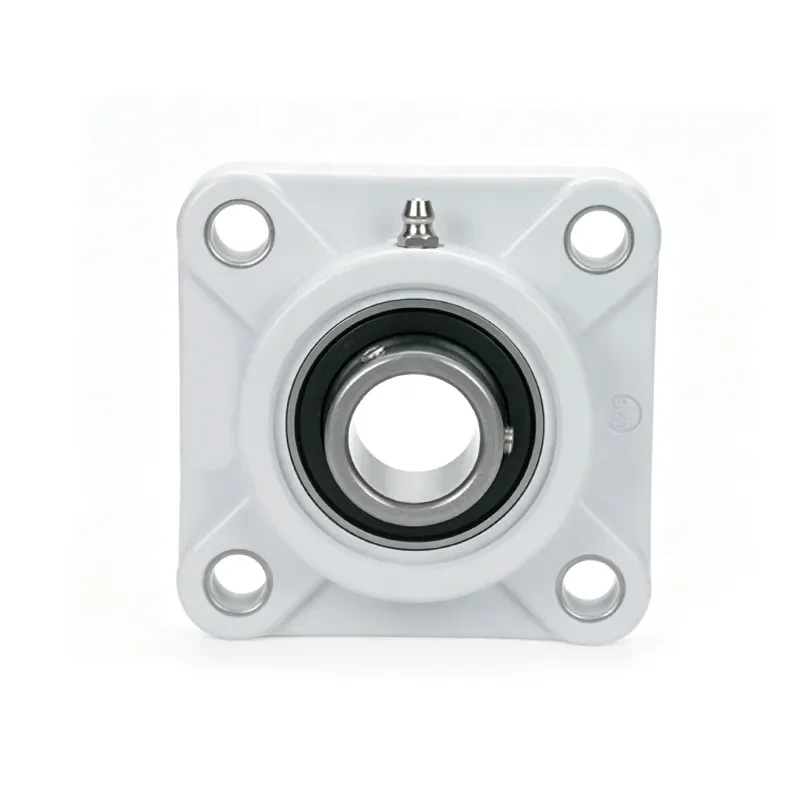

Square-flange bearing units feature a compact design and are easy to install. The square-flange design facilitates precise positioning and secure mounting, enabling them to effectively withstand combined radial and axial loads. Offering stable operation and excellent sealing performance, they are widely compatible with various types of automated equipment, conveying machinery and general-purpose transmission systems. Combining high rigidity with durability, they meet the requirements for efficient and stable operation across a wide range of applications.
| shaft diameter (mm) |

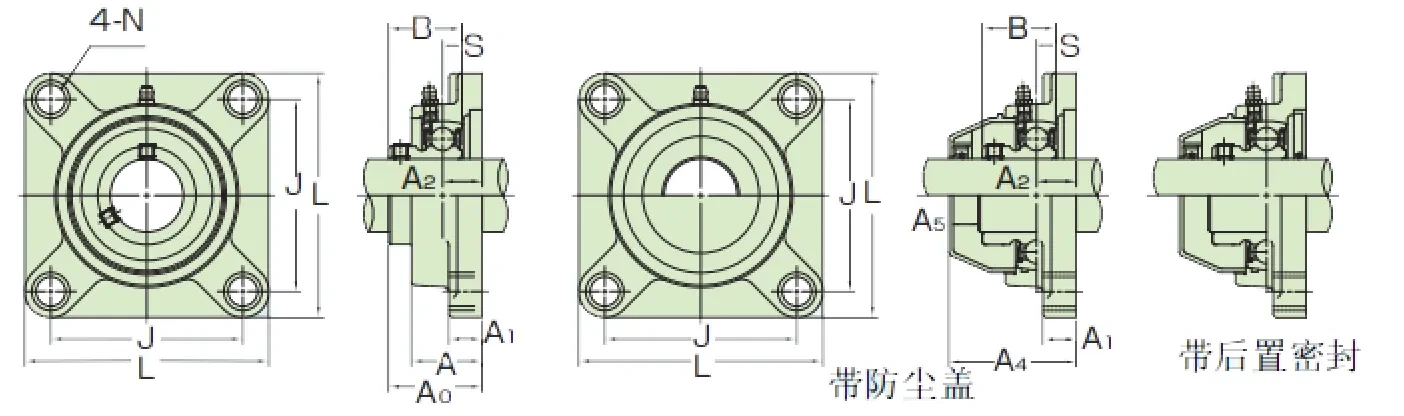

Bearing unit type number | Main dimensions（mm） | Installation bolt specification | Basic Rated Load(kN) | Bearing Seat Type Number | Bearing unit type number with protective cover | Weight（kg） | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | J | A2 | A1 | A | N | A0 | B | S | A4 | A5 | Type number | Cr | Cor | Equipped with rubber sealing cover | Shaft end cover | lidless | with lid | |||||
| 40 | MBFPL208V | 130 | 102 | 23 | 17 | 37.5 | 14 | 49.5 | 35.5 | 9 | 71 | 19 | M12 | MB8V | 24.9 | 14.3 | FPL208 | MBFPL208VC | MBFPL208VE | 0.74 | 0.77 | |
| 35 | MBFPL207V | 118 | 92 | 21.5 | 15.5 | 34.8 | 13 | 45.9 | 32.9 | 8.5 | 64 | 15 | M12 | MB7V | 22 | 12.3 | FPL207 | MBFPL207VC | MBFPL207VE | 0.55 | 0.58 | |
| 30 | MBFPL206V | 107 | 83 | 19.2 | 14.3 | 31.5 | 11 | 41.5 | 30.3 | 8 | 59 | 15 | M10 | MB6V | 16.7 | 9 | FPL206 | MBFPL206VC | MBFPL206VE | 0.38 | 0.4 | |
| 25 | MBFPL205V | 94.5 | 70 | 17 | 14.3 | 27.9 | 11 | 36.5 | 27 | 7.5 | 51 | 11 | M10 | MB5V | 11.9 | 6.3 | FPL205 | MBFPL205VC | MBFPL205VE | 0.27 | 0.29 | |
| 20 | MBFPL204V | 86 | 63.5 | 18 | 13.4 | 27.8 | 11 | 35.7 | 24.7 | 7 | 49 | 10 | M10 | MB4V | 10.9 | 5.3 | FPL204 | MBFPL204VC | MBFPL204VE | 0.19 | 0.21 | |
