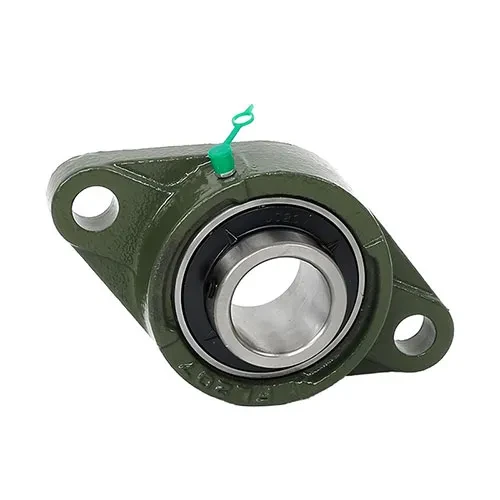

Rhombic flange

Back

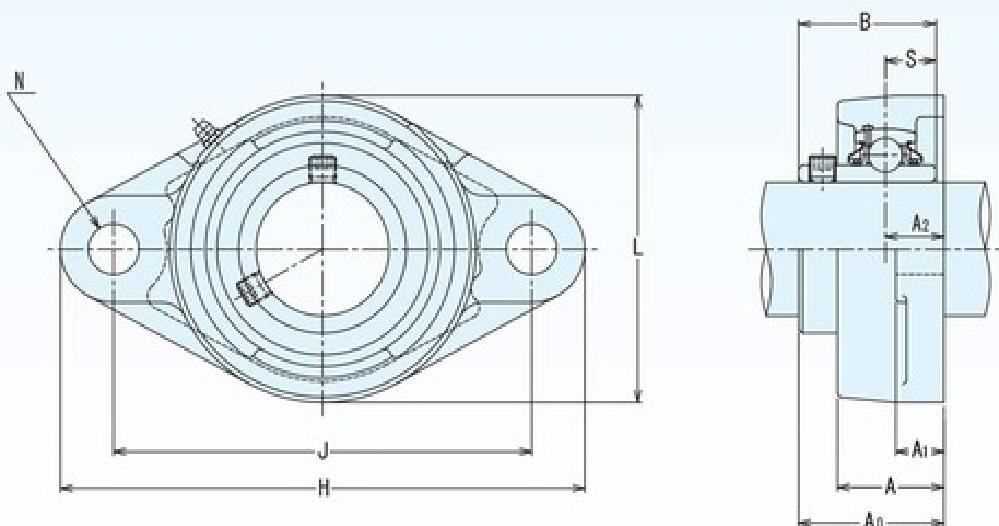

shaft diameter(mm)	Bearing unit type number	Main dimensions(mm)										Installation bolt nominal specification	Type number	Bearing		Bearing seat nominal type number	Weight of bearing with seat (kg)
		Main dimensions(mm)												Basic Rated Load(kN)
		H	L	A	J	N	A₁	A₁	A₀	B	S			Cr	Cor
65	UCFL213RT	258	155	50	210	23	24	30	69.7	65.1	25.4	M20	UC213RT	57.5	40	FL213	5.1
60	UCFL212RT	250	140	48	202	23	20	29	68.7	65.1	25.4	M20	UC212RT	52.5	36.1	FL212	4.1
55	UCFL211RT	224	130	43	184	19	20	25	58.4	55.6	22.2	M16	UC211RT	43	29.4	FL211	3.2
50	UCFL210RT	197	115	40	157	19	18	22	54.6	51.6	19	M16	UC210RT	35.5	23.2	FL210	2.2
45	UCFL209RT	188	108	38	148	19	18	22	52.2	49.2	19	M16	UC209RT	33	20.5	FL209	1.9
40	UCFL208RT	175	100	36	144	16	16	21	51.2	49.2	19	M14	UC208RT	29.3	17.9	FL208	1.51
35	UCFL207RT	161	90	34	130	16	16	19	44.4	42.9	17.5	M14	UC207RT	25.9	15.4	FL207	1.2
30	UCFL206RT	148	80	31	117	16	14	18	40.2	38.1	15.9	M14	UC206RT	19.6	11.3	FL206	0.9
25	UCFL205RT	130	68	27	99	16	14	16	35.8	34.1	14.3	M14	UC205RT	14	7.9	FL205	0.59
20	UCFL204RD	113	60	25.5	90	12	12	15	33.3	31	12.7	M10	UC204RD	12.8	6.6	FL204	0.42
17	UCFL203RD	113	60	25.5	90	12	12	15	33.3	31	12.7	M10	UC203RD	12.8	6.6	FL204	0.44
15	UCFL202RD	113	60	25.5	90	12	12	15	33.3	31	12.7	M10	UC202RD	12.8	6.6	FL204	0.45
12	UCFL201RD	113	60	25.5	90	12	12	15	33.3	31	12.7	M10	UC201RD	12.8	6.6	FL204	0.47
