The UCIP-type spherical outer ring bearing unit with an eccentric sleeve features a robust construction and is easy to install. It utilises the eccentric sleeve for rapid locking and positioning, offers built-in self-aligning capabilities, provides excellent sealing protection, and delivers stable and durable operation. It is suitable for a wide range of general mechanical equipment transmission support applications.

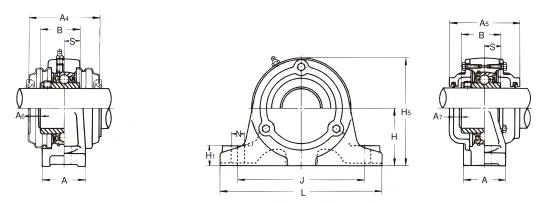

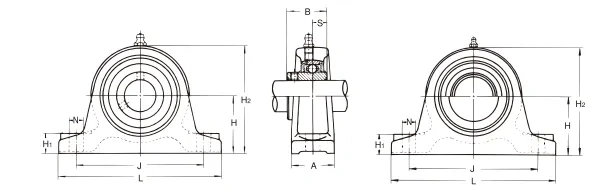

| Eccentric collar UCIP type Model specification table | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shaft diameter (mm) |
Unit model | H (mm) |
L (mm) |
A (mm) |
J (mm) |
N (mm) |
H₁ (mm) |
H₂ (mm) |
H₅ (mm) |
B (mm) |
S (mm) |
A₄ (mm) |
A₅ (mm) |
A₆ (mm) |
A₇ (mm) |
Installation bolt model | bearing model number | Radial Basic Rating Dynamic load Cr(kN) |
Radial Basic Rating Static load Cor(kN) |
Standard bearing seat model | Steel plate with protective cover Unit model |
Cast iron with protective cover Unit model |
Standard type weight(kg) |
Steel plate type with protective cover weight(kg) |
Cast iron type with protective cover weight(kg) |
| 140 | UCIP328 | 200 | 590 | 110 | 500 | 35 | 55 | 400 | 400 | 145 | 59 | — | 240 | — | 24 | M30 | UC328 | 255 | 246 | IP328 | — | ※CUCIP328C(CE) | 83.5 | — | 105 |
| 130 | UCIP326 | 200 | 550 | 110 | 470 | 32 | 50 | 390 | 390 | 135 | 54 | — | 230 | — | 24 | M27 | UC326 | 229 | 214.3 | IP326 | — | ※CUCIP326C(CE) | 73.2 | — | 94.3 |
| 120 | UCIP324 | 170 | 510 | 100 | 430 | 32 | 50 | 345 | 345 | 126 | 51 | — | 220 | — | 25 | M27 | UC324 | 207 | 184.8 | IP324 | — | CUCIP324C(CE) | 56.8 | — | 72.3 |
| 110 | UCIP322 | 170 | 490 | 100 | 410 | 32 | 50 | 335 | 335 | 117 | 46 | — | 210 | — | 26 | M27 | UC322 | 205 | 178.8 | IP322 | — | CUCIP322C(CE) | 50.4 | — | 61.2 |
| 100 | UCIP320 | 150 | 430 | 85 | 360 | 29 | 45 | 295 | 295 | 108 | 42 | — | 190 | — | 21 | M24 | UC320 | 173 | 140.4 | IP320 | — | CUCIP320C(CE) | 33.4 | — | 44.2 |
| 95 | UCIP319 | 150 | 410 | 85 | 340 | 29 | 45 | 285 | 285 | 103 | 41 | — | 180 | — | 20 | M24 | UC319 | 153 | 118.4 | IP319 | — | CUCIP319C(CE) | 29.7 | — | 38.5 |
| 90 | UCIP318 | 130 | 400 | 85 | 330 | 29 | 45 | 260 | 260 | 96 | 40 | — | 168 | — | 20 | M24 | UC318 | 143 | 107.2 | IP318 | — | CUCIP318C(CE) | 25.7 | — | 33.2 |
| 85 | UCIP317 | 130 | 370 | 85 | 310 | 25 | 40 | 255 | 255 | 96 | 40 | — | 164 | — | 18 | M22 | UC317 | 132 | 96.5 | IP317 | — | CUCIP317C(CE) | 23.1 | — | 27.86 |
| 80 | UCIP316 | 120 | 350 | 85 | 290 | 25 | 40 | 235 | 235 | 86 | 34 | — | 154 | — | 17 | M22 | UC316 | 123 | 86.4 | IP316 | — | CUCIP316C(CE) | 20.8 | — | 24.8 |
| 75 | UCIP315 | 120 | 340 | 75 | 280 | 25 | 35 | 230 | 230 | 82 | 32 | — | 150 | — | 17 | M22 | UC315 | 114 | 76.9 | IP315 | — | CUCIP315C(CE) | 16.2 | — | 21.8 |
| 70 | UCIP314 | 110 | 330 | 75 | 270 | 25 | 35 | 215 | 215 | 78 | 33 | — | 140 | — | 17 | M22 | UC314 | 104 | 68 | IP314 | — | CUCIP314C(CE) | 15.07 | — | 19.2 |
| 65 | UCIP313 | 110 | 310 | 70 | 250 | 22 | 30 | 208 | 208 | 75 | 30 | — | 140 | — | 17 | M20 | UC313 | 92.5 | 59.7 | IP313 | — | CUCIP313C(CE) | 12.64 | — | 15.12 |
| 65 | UCIP213 | 90 | 280 | 70 | 220 | 22 | 30 | 172 | 172 | 65.1 | 25.4 | 111 | 118 | 14 | 13 | M20 | UC213 | 57.5 | 40 | IP213 | ※UCIP213C(E) | ※CUCIP213C(CE) | 7.5 | 8 | 10.1 |
| 60 | UCIP212 | 80 | 260 | 70 | 200 | 22 | 30 | 155 | 155 | 65.1 | 25.4 | 113 | 114 | 15 | 11 | M20 | UC212 | 52.5 | 36.1 | IP212 | ※UCIP212C(E) | ※CUCIP212C(CE) | 5.9 | 6.3 | 8 |
| 55 | UCIP211 | 80 | 230 | 60 | 180 | 19 | 28 | 148 | 150 | 55.6 | 22.2 | 97 | 100 | 14 | 10 | M16 | UC211 | 43 | 29.4 | IP211 | ※UCIP211C(E) | ※CUCIP211C(CE) | 5.5 | 5.8 | 6.2 |
| 50 | UCIP210 | 70 | 220 | 60 | 170 | 19 | 28 | 132 | 133 | 51.6 | 19 | 92 | 98 | 12 | 10 | M16 | UC210 | 35.5 | 23.2 | IP210 | ※UCIP210C(E) | ※CUCIP210C(CE) | 4.4 | 4.7 | 5 |
| 45 | UCIP209 | 70 | 210 | 60 | 160 | 19 | 25 | 128 | 130 | 49.2 | 19 | 92 | 90 | 15 | 8 | M16 | UC209 | 33 | 20.5 | IP209 | ※UCIP209C(E) | ※CUCIP209C(CE) | 3.8 | 4.1 | 4.5 |
| 40 | UCIP208 | 60 | 200 | 60 | 150 | 19 | 25 | 115 | 115 | 49.2 | 19 | 86 | 90 | 12 | 8 | M16 | UC208 | 29.3 | 17.9 | IP208 | ※UCIP208C(E) | ※CUCIP208C(CE) | 3.6 | 3.8 | 4 |
