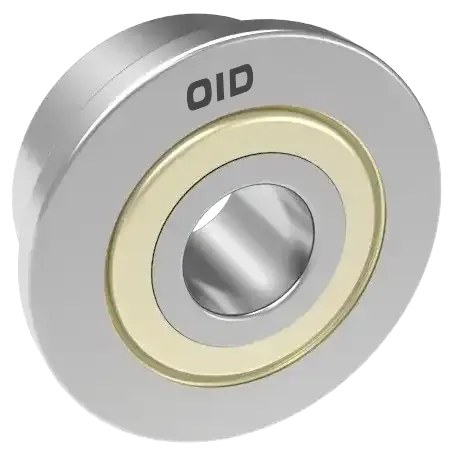

Metric series bore with snap ring shoulder 5-9mm

Metric series bore with snap ring shoulder 5-9mm

Metric series

Metric series bore with snap ring shoulder 5-9mm

Back

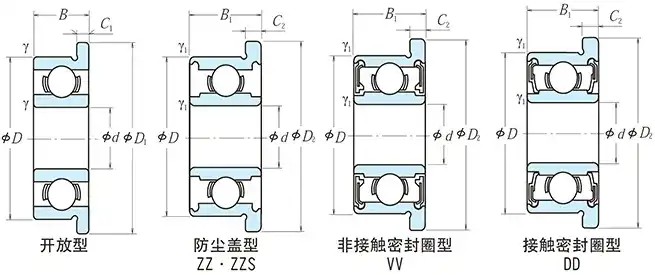

Overall dimensions（mm)										Rated load(N)		Rated load{kgf}		Rated speed min^-1			Bearing code				Installation dimensions(mm)				Weight(g)(Reference)
d	D	d₁	D₂	B	B₁	C₁	C₂	γ(minimum)	γ₁(minimum)	C_r	C_or	C_r	C_or	Grease lubrication Open Z·ZZ V·VV	D·DD	Oil lubrication Open Z	Open	Dust cover type	Sealing ring type	Sealing ring type	d_a（minimum）	d_b(maximum）	γ_a（maximum）	γ_b(maximum）	Open	Dust cover type
9	20	23	23	6	6	1.5	1.5	0.3	0.3	1720	840	175	86	34000	24000	40000	F699	F699ZZ1	VV	DD	11	12	0.3	0.3	9.51	9.51
9	17	19	19	4	5	1	1.1	0.2	0.2	1330	665	136	68	36000	24000	43000	F689	F689ZZ1	VV	DD	10.6	11.5	0.2	0.2	3.97	4.91
8	22	25	25	7	7	1.5	1.5	0.3	0.3	3300	1370	335	140	34000	28000	40000	F608	F608ZZ	VV	DD	10	10.5	0.3	0.3	13.4	13.5
8	19	22	22	6	6	1.5	1.5	0.3	0.3	2240	910	228	93	36000	28000	43000	F698	F698ZZ	VV	DD	10	10	0.3	0.3	8.35	8.3
8	16	18	18	4	5	1	1.1	0.2	2	1610	710	164	73	36000	30000	43000	F688A	F688AZZ	VV	DD	9.6	10.2	0.2	0.2	3.54	4.47
8	14	15.6	15.6	3.5	4	0.8	0.8	0.2	0.15	820	385	83	39	38000	32000	45000	MF148	MF148ZZ	VV	DD	9.6	9.2	0.2	0.15	2.09	2.39
8	12	13.2	13.6	2.5	3.5	0.6	0.8	0.15	0.1	545	274	56	28	40000	—	48000	MF128	MF128ZZ1	—	—	9.2	9	0.15	0.1	0.82	1.15
7	22	25	25	7	7	1.5	1.5	0.3	0.3	3300	1370	335	140	30000	28000	36000	F627	F627ZZ	VV	DD	9	10.5	0.3	0.3	14.2	14.2
7	19	22	22	6	6	1.5	1.5	0.3	0.3	2340	885	238	90	36000	32000	43000	F607	F607ZZ1	VV	DD	9	9.1	0.3	0.3	8.66	8.66
7	17	19	19	5	5	1.2	1.2	0.3	0.3	1610	715	164	73	36000	28000	43000	F697	F697ZZ1	VV	DD	9	10.2	0.3	0.3	5.65	5.65
7	14	16	16	3.5	5	1	1.1	0.15	0.15	1170	510	120	52	40000	34000	45000	F687	F687ZZ1	VV	DD	8.2	8.5	0.15	0.15	2.48	3.37
7	13	14.2	14.6	3	4	0.6	0.8	0.2	0.15	540	276	55	28	40000	—	48000	MF137	MF137ZZ	—	—	8.6	9	0.2	0.15	1.7	2.23
7	11	12.2	12.2	2.5	3	0.6	0.6	0.15	0.1	455	201	47	21	43000	—	50000	MF117	MF117ZZ	—	—	8.2	8	0.15	0.1	0.72	0.82
6	22	25	25	7	7	1.5	1.5	0.3	0.3	3300	1370	335	140	30000	28000	36000	F636	F636ZZ	VV	DD	8	10.5	0.3	0.3	14.6	14.7
6	19	22	22	6	6	1.5	1.5	0.3	0.3	2340	885	238	90	32000	30000	40000	F626	F626ZZ1	VV	DD	8	8.5	0.3	0.3	9.09	9.09
6	17	19	19	6	6	1.2	1.2	0.3	0.3	2260	835	231	85	38000	34000	45000	F606	F606ZZ	VV	DD	8	8.2	0.3	0.3	6.58	6.61
6	15	17	17	5	5	1.2	1.2	0.2	0.2	1730	670	177	68	40000	36000	45000	F696	F696ZZ1	VV	DD	7.6	7.9	0.2	0.2	4.34	4.26
6	13	15	15	3.5	5	1	1.1	0.15	0.15	1080	440	110	45	40000	38000	50000	F686A	F686AZZ	VV	DD	7.2	7.4	0.15	0.15	2.25	3.04
6	12	13.2	13.6	3	4	0.6	0.8	0.2	0.15	715	292	73	30	43000	40000	50000	MF126	MF126ZZ	—	DD	7.6	7.2	0.2	0.15	1.38	1.94
6	10	11.2	11.2	2.5	3	0.6	0.6	0.15	0.1	495	218	51	22	45000	—	53000	MF106	MF106ZZ1	—	—	7.2	7	0.15	0.1	0.65	0.77

Total 29 items
