The eco-friendly series of vertical-mount eccentric ring-locked spherical roller bearings are manufactured using environmentally friendly materials and processes, contain no harmful substances, and are suitable for applications with high environmental and hygiene requirements. The vertical-mount design ensures stable installation and reliable load-bearing capacity, whilst the eccentric ring locking mechanism allows for easy assembly and disassembly and provides uniform locking force, effectively preventing the bearing from loosening. The product features built-in self-aligning capabilities, compensating for installation errors. It operates smoothly with low noise and offers a long service life, making it widely used in transmission components within food processing, light industrial machinery and automated equipment where strict requirements for environmental friendliness and stable operation are paramount.
| shaft diameter (mm) |
Bearing unit type number | Main dimensions（mm） | Installation bolt specification | Basic Rated Load(kN) | Bearing Seat Type Number | Bearing unit type number with protective cover Equipped with rubber sealing cover （Single side shaft end shield） |
Type number with stainless steel cover | Weight（kg） | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

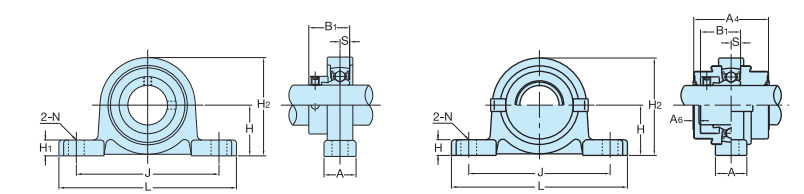

| H | L | A | J | N | H1 | H2 | B1 | S | A4 | A6 | Type number | Cr | Cor | With rubber sealing cover | Shaft end shield | standard | with lid | |||||
| 30 | MUSP006 | 36 | 132 | 26 | 106 | 13 | 10 | 69 | 26.5 | 6.5 | 50 | 4 | M10 | MU006,X+ER-MSG | 11.3 | 6.6 | SP006 | MUSP006C(E) | 06-7CP30 | 06-7CPE | 448 | 478 |
| 25 | MUSP005 | 32 | 112 | 20 | 90 | 10 | 9 | 60.5 | 25.5 | 6 | 47 | 3 | M8 | MU005,X+ER-MSG | 8.6 | 4.65 | SP005 | MUSP005C(E) | 05-6CP25 | 05-6CPE | 333 | 358 |
| 20 | MUSP004 | 28 | 100 | 20 | 80 | 10 | 8 | 53.5 | 24.5 | 6 | 46 | 3 | M8 | MU004,X+ER-MSG | 7.9 | 4 | SP004 | MUSP004C(E) | 04-5CP20 | 04-5CPE | 258 | 282 |
| 17 | MUSP003 | 24 | 85 | 18 | 67 | 7 | 7 | 46 | 20.5 | 5 | 38 | 2 | M6 | MU0O3,X+ER-MSG | 5.1 | 2.65 | SP003 | MUSP003C(E) | 003CP17 | 003CPE | 170 | 186 |
| 15 | MUSP002 | 22 | 80 | 16 | 63 | 7 | 6 | 42 | 18.5 | 4.5 | 34 | 2 | M6 | MU002,X+ER-MSG | 4.75 | 2.25 | SP002 | MUSP002C(E) | 002CP15 | 002CPE | 129 | 141 |
| 12 | MUSP001 | 19 | 71 | 16 | 56 | 7 | 6 | 37 | 17.5 | 4 | 33 | 2 | M6 | MU001.X+ER-MSG | 4.3 | 1.9 | SP001 | MUSP001C(E) | 001CP12 | 001CPE | 98 | 109 |
| 10 | MUSP000 | 18 | 67 | 16 | 53 | 7 | 5 | 34 | 17.5 | 4 | 33 | 2 | M6 | MU000,X+ER-MSG | 3.9 | 1.55 | SP000 | MUSP000C(E) | 000CP10 | ooOCPE | 79 | 89 |
